Aero Diagrams

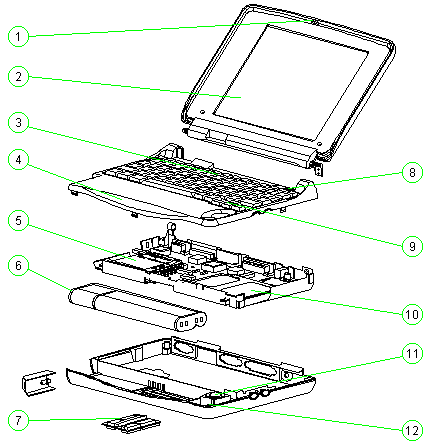

Compaq Aero, exploded view (aero-ev.gif)

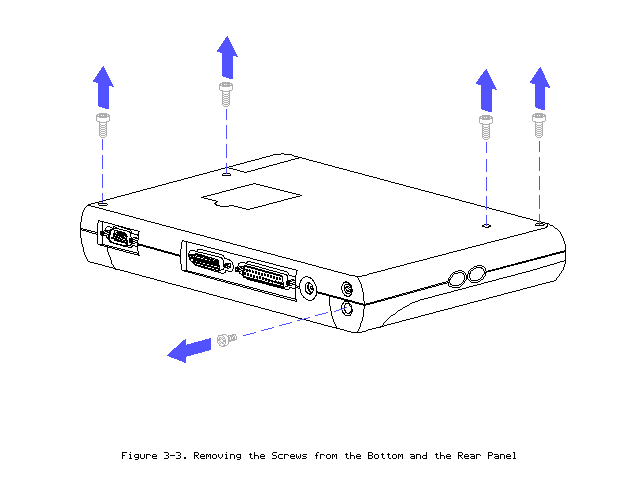

Figure 3-3. Removing the Screws from the Bottom and Rear Panel (p1.gif)

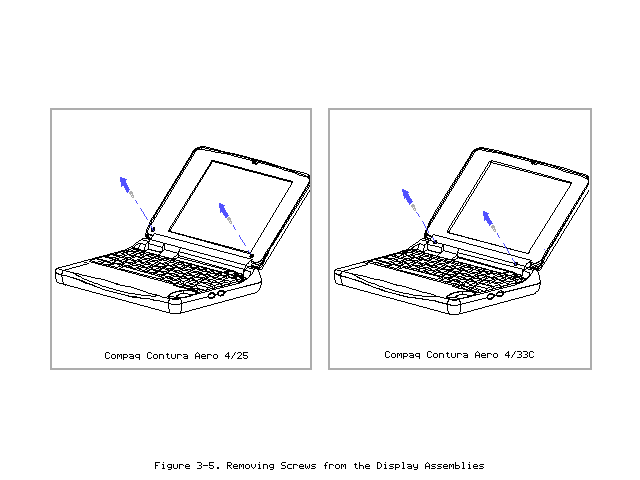

Figure 3-5. Removing Screws from the Display Assemblies (p2.gif)

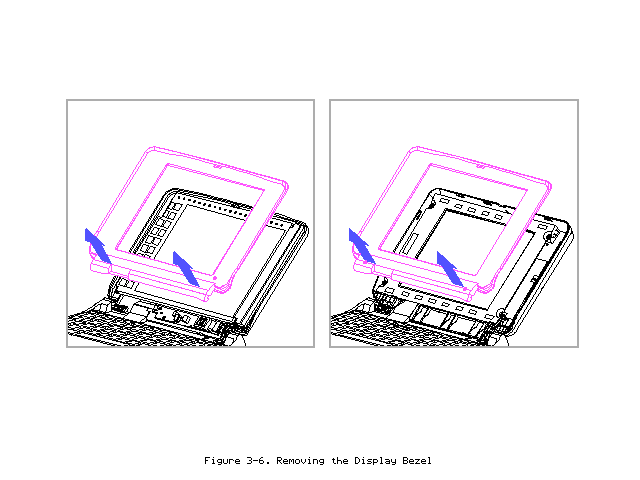

Figure 3-6. Removing the Display Bezel (p3.gif)

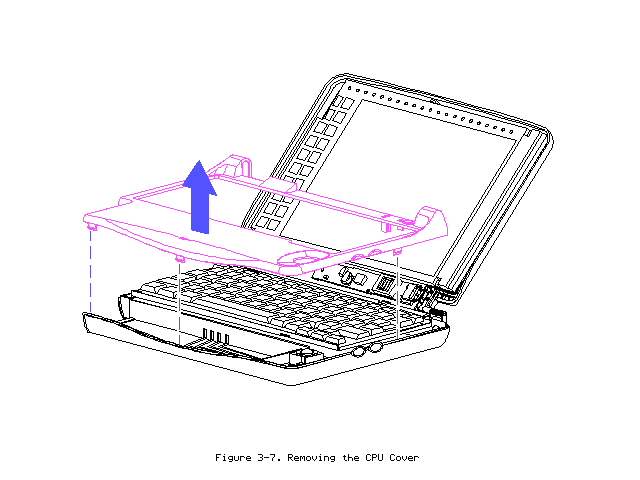

Figure 3-7. Removing the CPU Cover (p4.gif)

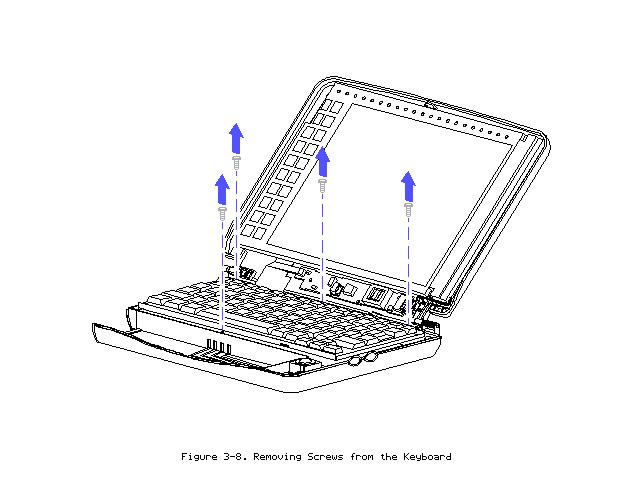

Figure 3-8. Removing Screws from the Keyboard (p5.gif)

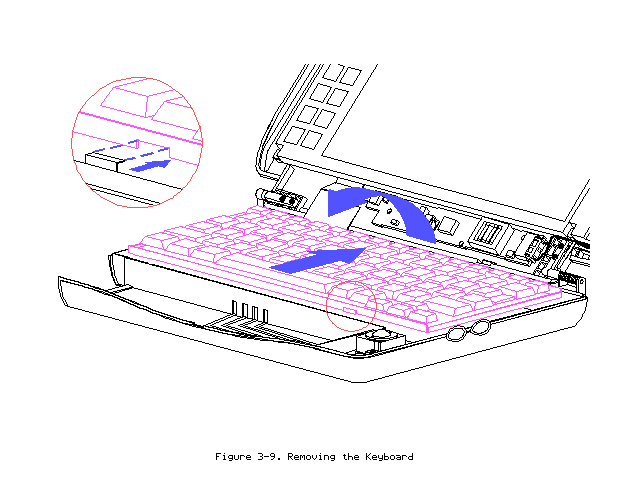

Figure 3-9. Removing the Keyboard (p6.gif)

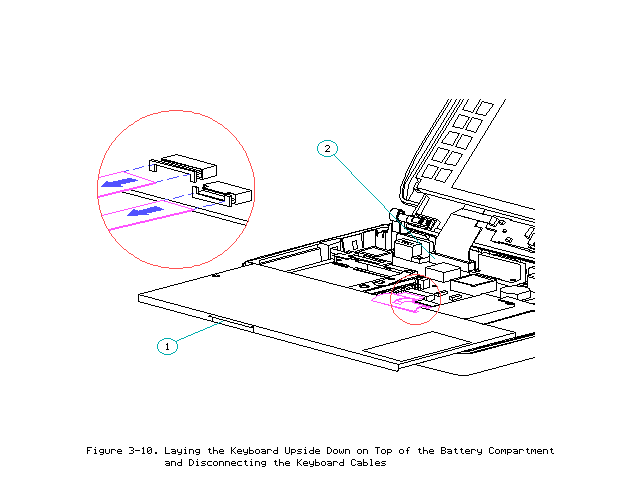

Figure 3-10. Laying the Keyboard Upside Down on Top of the Battery Compartment and Disconnecting the Keyboard Cables (p7.gif)

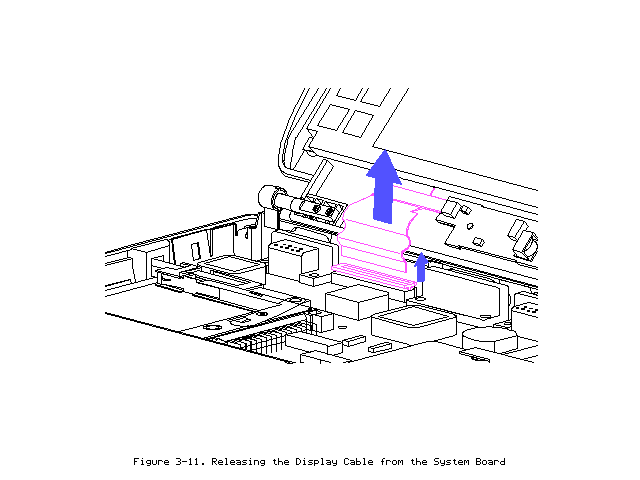

Figure 3-11. Releasing the Display Cable from the System Board (p8.gif)

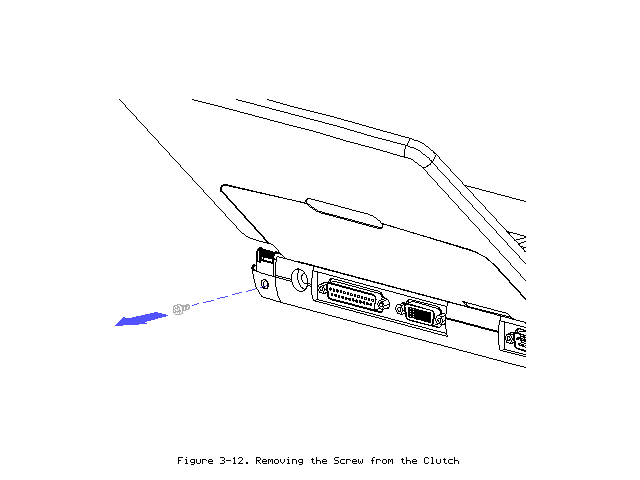

Figure 3-12. Removing the Screw from the Clutch (p9.gif)

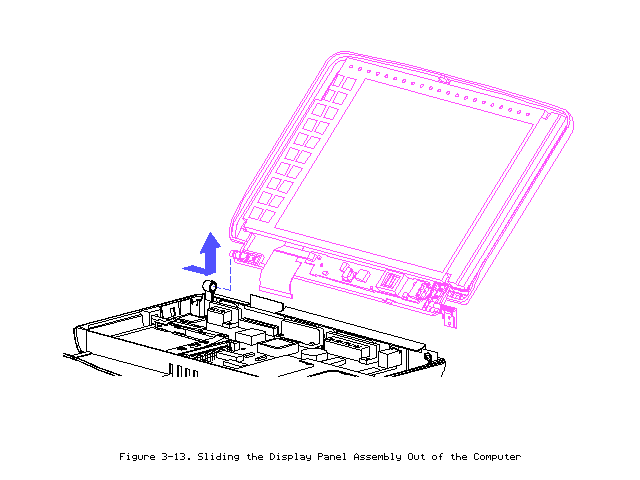

Figure 3-13. Sliding the Display Panel Assembley Out of the Computer (p10.gif)

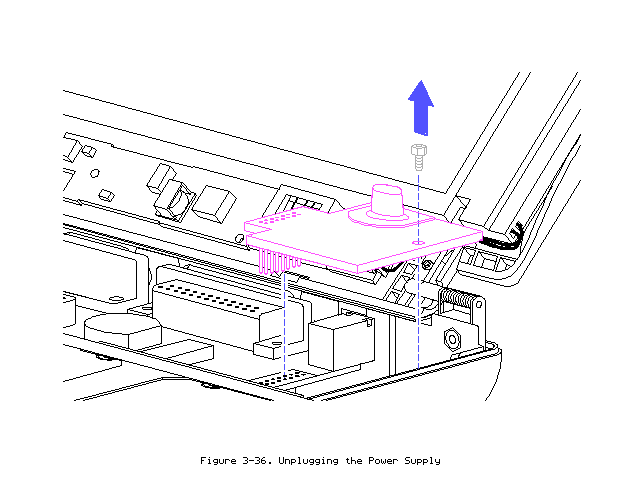

Figure 3-36. Unplugging the Power Supply (p11.gif)

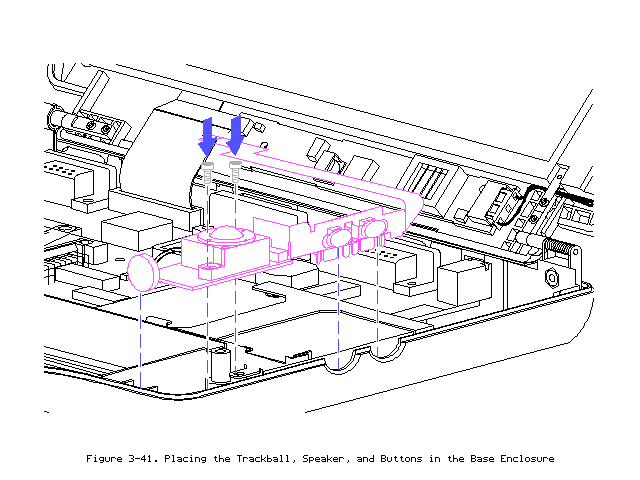

Figure 3-41. Placing the Trackball, Speaker, and Buttons in the Base Enclosure (p12.gif)

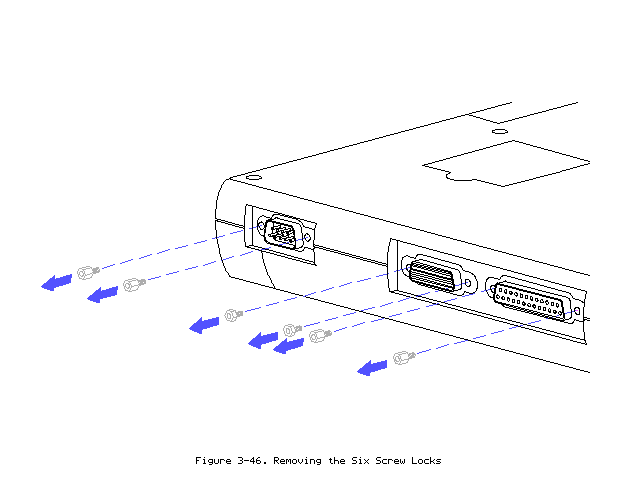

Figure 3-46. Removing the Six Screw Locks (p13.gif)

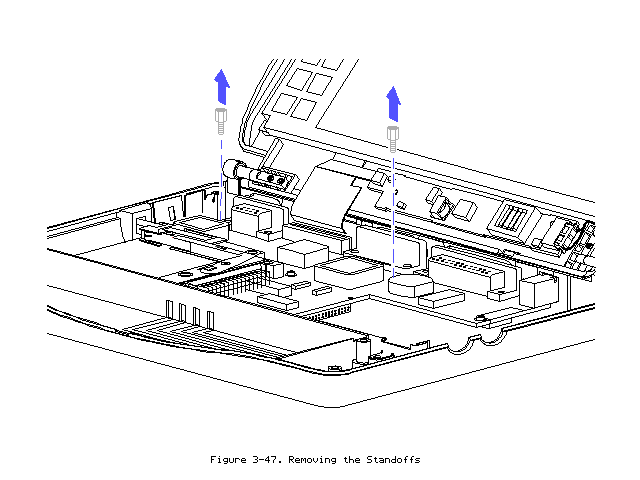

Figure 3-47. Removing the Standoffs (p14.gif)

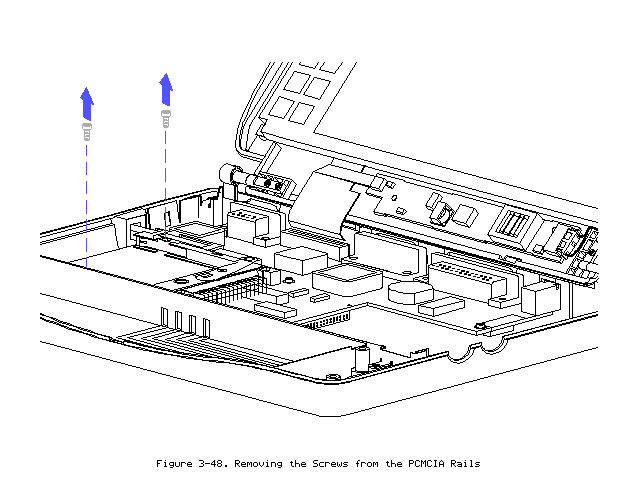

Figure 3-48. Removing the Screws from the PCMCIA Rails (p15.gif)

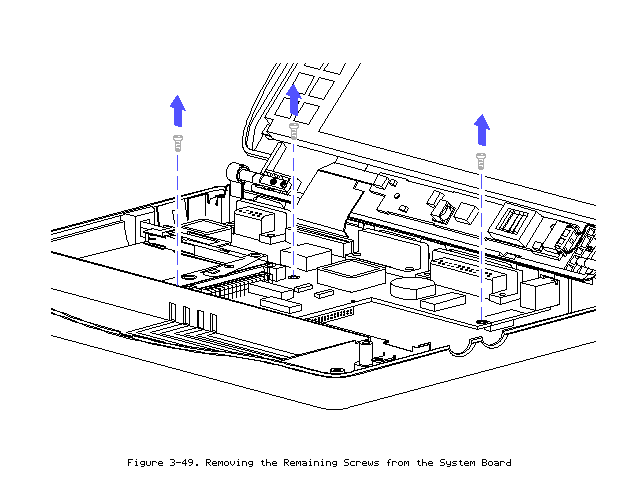

Figure 3-49. Removing the Remaining Screws from the System Board (p16.gif)

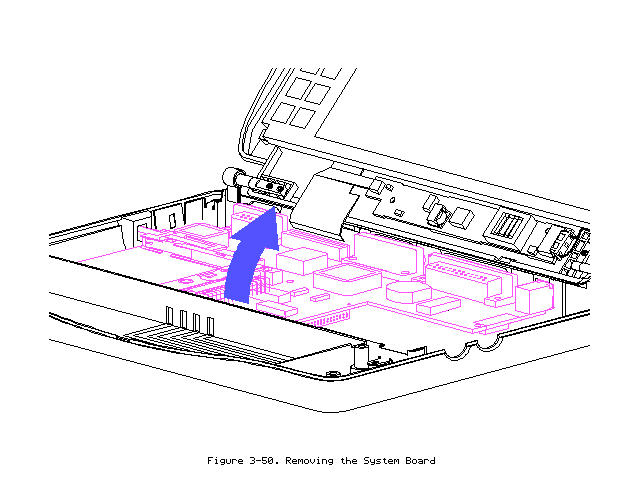

Figure 3-50. Removing the System Board (p17.gif)

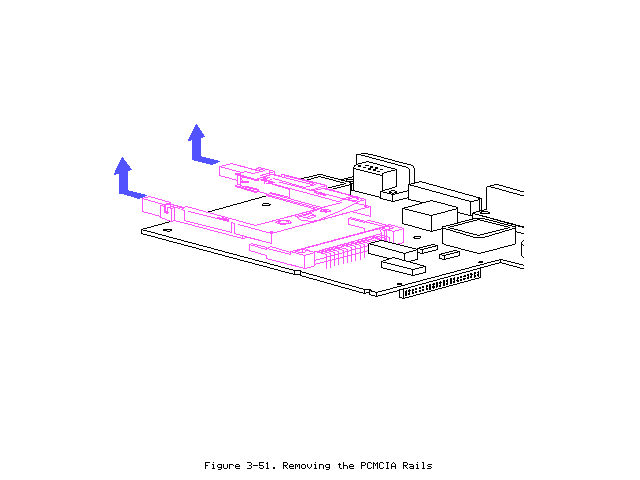

Figure 3-51. Removing the PCMCIA Rails (p18.gif)

These diagrams were kindly procured by Steven Lawson.
