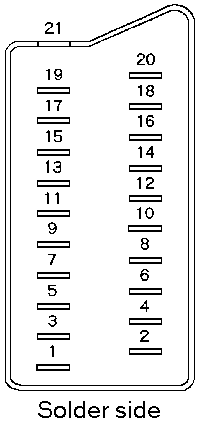

| 21 | Ground/Shield |
| 19 | Composite Video Out |
| 17 | Composite Video Ground |
| 15 | Red / Chroma |
| 13 | Red Ground |
| 11 | Green |
| 9 | Green ground |
| 7 | Blue |
| 5 | Blue ground |
| 3 | Audio out L & mono |
| 1 | Audio out R |
| 20 | Composite Video In / Luminance |
| 18 | Blanking Signal Ground |
| 16 | Blanking Signal |
| 14 | Data Ground |
| 12 | Data out |
| 10 | Clock out |
| 8 | Audio / RGB Switch 16:9 |
| 6 | Audio In Left & Mono |
| 4 | Audio Ground |
| 2 | Audio In Right |
