In this page you can see how waypoints are represented on the screen of the Garmin eTrex 10 device. Every waypoint is identified by a 16 bit number, where the most significant part is often called the type (because it usually identifies a family of symbols) and the least significant part is called the subtype. For example, the Gas Station symbol has the code 0x2f01, where the type 0x2f identifies the Auto services & transportation family, and 0x01 is the subtype. Subtype is in the range 0x00 - 0x1f.

Not all combinations of types and subtypes are displayed on the GPS, the following tables were generated by creating several test maps and checking how they are displayed on the screen. The reverse engeneering is complicated by the fact that several icons are displayed by the device only at scales of 50 meteres (200 feet) or lower.

If you want to create custom maps for the Garmin eTrex 10 from OpenStreetMap data, you will use the mkgmap program. The program uses a default style for all the Garmin devices and the style associates each OSM feature to a symbol type (the hex number like 0x2d01); each Garmin device will show its own icon for that code. Some devices have grayscale icons, others have color ones, some devices does not have at all an icon associated for that type code. So the default style may be not the optimal on the eTrex 10.

You can customize the styles/default/points source file of the mkgmap program and choose how each waypoint type will be rendered on the eTrex 10; this is an excerpt of the file:

amenity=theatre [0x2d01 resolution 24]
amenity=toilets [0x4e00 resolution 24 default_name 'Toilets' ]
amenity=townhall [0x3003 resolution 24]
amenity=university [0x2c05 resolution 24]
amenity=zoo [0x2c07 resolution 24]

The customized points file can be used in the mkgmap invokation, without recompiling the program.

POI Categories

POIs included into the map will be shown into the Where to? menu, divided into different categories according to the type and subtype code. Waypoints are displayed and are searchable by their name tag. In the following table only the main category has been taken into consideration, not any sub-category.

Shopping	0x2e00 Shopping Center	0x2e01 Department Store	0x2e02 Shopping Center	0x2e03 Department Store	0x2e04 Shopping Center	0x2e05 Pharmacy	0x2e06 Convenience Store	0x2e07 Department Store	0x2e08 Dot White	0x2e09 Dot White	0x2e0a Dot White	0x2e0b Dot White	0x2e0c Department Store	0x2e0d Department Store	0x2e0e Dot White
Food and Drink	0x2a00 Restaurant	0x2a01 Restaurant	0x2a02 Restaurant	0x2a03 Restaurant	0x2a04 Restaurant	0x2a05 Restaurant	0x2a06 Restaurant	0x2a07 Fastfood	0x2a08 Restaurant	0x2a09 Restaurant	0x2a0a Restaurant	0x2a0b Restaurant	0x2a0c Restaurant	0x2a0d Restaurant	0x2a0e Restaurant	0x2a0f Restaurant	0x2a10 Restaurant	0x2a11 Restaurant	0x2a12 Restaurant	0x2a13 Restaurant	0x2a14 Restaurant	0x2a15 Restaurant	0x2a16 Restaurant	0x2a17 Restaurant	0x2a18 Restaurant	0x2a19 Restaurant	0x2a1a Restaurant	0x2a1b Restaurant	0x2a1c Restaurant	0x2a1d Restaurant	0x2a1e Restaurant	0x2a1f Restaurant
Fuel Services	0x2e06 Convenience Store	0x2f01 Fuel	0x2f16 Truck Stop
Lodging	0x2b00 Hotel	0x2b01 Hotel	0x2b02 Hotel	0x2b04 Campground	0x2b05 Campground	0x2b07 Campground
Entertainment	0x2d00 Movie Theater	0x2d01 Live Theater	0x2d02 Bar	0x2d03 Movie Theater	0x2d04 Casino	0x2d0c Bar	0x2d0d Bar	0x2d0e Bar	0x2d0f Bar	0x2d10 Movie Theater	0x2d11 Movie Theater
Recreation	0x2c01 Amusement Park	0x2c06 Park	0x2c08 Ball Park	0x2c13 Park	0x2c16 Museum	0x2d05 Golf Course	0x2d06 Skiing	0x2d07 Bowling	0x2d08 Iceskate	0x2d09 Swimming	0x2d0a Fitness Center	0x2d0b Airport	0x2d12 Park	0x2d13 Fitness Center
Attractions	0x2c00 Amusement Park	0x2c01 Amusement Park	0x2c02 Museum	0x2c04 Scenic Area	0x2c06 Park	0x2c07 Zoo	0x2c08 Ball Park	0x2c09 Museum	0x2c0a Wine	0x2c0c Park	0x2c11 Museum	0x2c12 Museum	0x2c13 Park	0x2c16 Museum	0x2c17 Park	0x2c18 Dot White	0x2c19 Dot White	0x2c1a Dot White
Transportation	0x2f02 Car Rental	0x2f04 Airport	0x2f08 Bus	0x2f17 Dot White	0x2f1f Bus
Auto Services	0x2f02 Car Rental	0x2f03 Car Repair	0x2f07 Car	0x2f0a Wrecker Service	0x2f0b Parking	0x2f0c Restroom	0x2f0d Car	0x2f0e Car	0x2f16 Truck Stop	0x2f18 Bus
Community	0x2c03 Libraries	0x2c05 School	0x2c0b Dot White	0x2c0d Place of worship	0x2c0e Place of worship	0x2c0f Place of worship	0x2c10 Place of worship	0x2c14 School	0x2c15 School	0x2f05 Post Office	0x2f06 Dollar	0x2f15 Dot White	0x2f1d Dollar	0x2f1e Dollar	0x3001 Police Station	0x3003 Public Office	0x3004 Building	0x3005 Building	0x3006 Border Crossing	0x3007 Dot White	0x3008 Dot White	0x3009 Police Station	0x300a Building	0x300b Building
Hospitals	0x3002 First Aid
Obstructions	0x1c00 Obstruction	0x1c01 Wreck	0x1c02 Wreck	0x1c03 Wreck	0x1c04 Wreck	0x1c05 Obstruction	0x1c06 Obstruction	0x1c07 Obstruction	0x1c08 Obstruction	0x1c09 Obstruction	0x1c0a Obstruction	0x1c0b Obstruction	0x1c0c Obstruction	0x1c0d Obstruction	0x1c0e Obstruction	0x1c0f Obstruction	0x1c10 Obstruction	0x1c11 Obstruction	0x1c12 Obstruction	0x1c13 Obstruction	0x1c14 Obstruction	0x1c15 Obstruction	0x1c16 Obstruction	0x1c17 Obstruction	0x1c18 Obstruction	0x1c19 Obstruction	0x1c1a Obstruction	0x1c1b Obstruction	0x1c1c Obstruction	0x1c1d Obstruction	0x1c1e Obstruction	0x1c1f Obstruction
Marine Services	0x1200 Info
Geographic Points	0x6400 Circle	0x6401 Bridge	0x6402 Building	0x6403 Cemetery	0x6404 Place of worship	0x6405 Flag with star	0x6406 Crossing	0x6407 Dam	0x6408 First Aid	0x6409 Levee	0x640a Circle	0x640b Military	0x640c Hammer and Spade	0x640d Oil Field	0x640e Park	0x640f Post Office	0x6410 Bell	0x6411 Tall Tower	0x6412 Trail	0x6413 Tunnel	0x6414 Drinking Water	0x6415 Watchtower	0x6416 Circle	0x6417 Circle	0x6418 Circle	0x6419 Circle	0x641a Circle	0x641b Circle	0x641c Circle	0x641d Circle	0x641e Circle	0x641f Circle	0x6500 White Diamond	0x6600 White Diamond	0x6601 White Diamond	0x6602 White Diamond	0x6603 White Diamond	0x6604 Beach	0x6605 White Diamond	0x6606 White Diamond	0x6607 White Diamond	0x6608 White Diamond	0x6609 White Diamond	0x660a Forest	0x660b White Diamond	0x660c White Diamond	0x660d White Diamond	0x660e White Diamond	0x660f White Diamond	0x6610 White Diamond	0x6611 White Diamond	0x6612 White Diamond	0x6613 White Diamond	0x6614 White Diamond	0x6615 White Diamond	0x6616 Summit	0x6617 White Diamond	0x6618 Forest	0x6619 White Diamond	0x661a White Diamond	0x661b White Diamond	0x661c White Diamond	0x661d White Diamond	0x661e White Diamond	0x661f White Diamond
Others	0x2f00 Dot White	0x2f09 Anchor	0x2f0f Garmin	0x2f10 Dot White	0x2f11 Dot White	0x2f12 Dot White	0x2f13 Dot White	0x2f14 Dot White	0x2f19 Dot White	0x2f1a Dot White	0x2f1b Dot White	0x2f1c Dot White

POI Symbols (Dots)

POIs with type in the range 0x01 - 0x0d will be rendered on the map alongside with a label displaying the name. They are used to represent populated places, so they are shown under the Cities category of the Where to? menu.

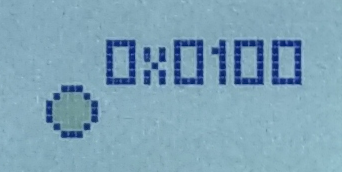

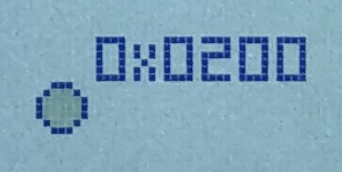

0x01	0x0100 City Large
0x02	0x0200 City Large

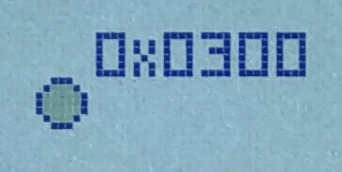

0x03	0x0300 City Large

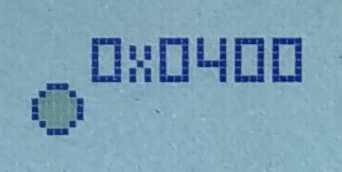

0x04	0x0400 City Large

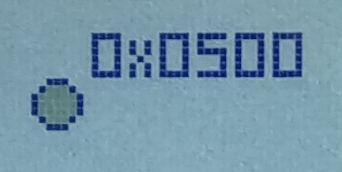

0x05	0x0500 City Large

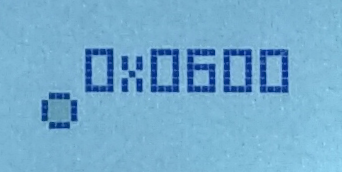

0x06	0x0600 City Medium

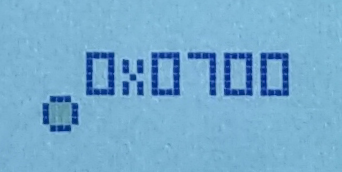

0x07	0x0700 City Medium

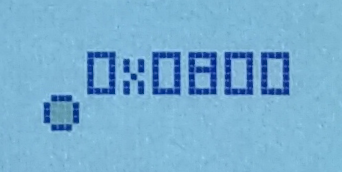

0x08	0x0800 City Medium

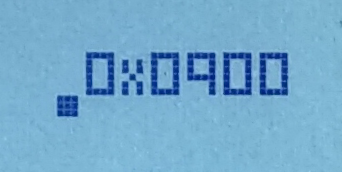

0x09	0x0900 City Small

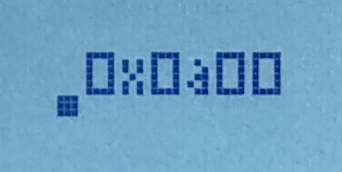

0x0a	0x0a00 City Small

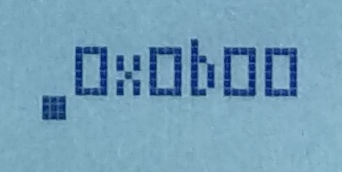

0x0b	0x0b00 City Small

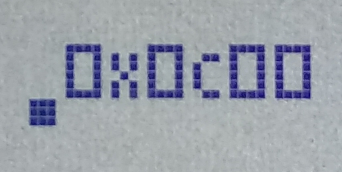

0x0c	0x0c00 City Small

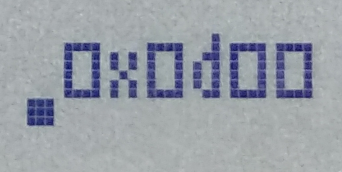

0x0d	0x0d00 City Small
0x0e	0x0e00 Dot Small
0x0f	0x0f00 Dot Small

POI Symbols (Icons)

Here it is the full set (may be!) of the symbols displayed by the eTrek 10. Many of them are repeated for all the type series, e.g. codes in the range 0x1200 - 0x121f are all shown as the Info icon; in that case only the first one is placed into this table. There are also many types that just repeat the Dot White symbol, which are simply skipped in this table.
Some symbols are displayed on the map, but they are not listed into the waypoints categories (into the Where to? menu), so they are not searchable even they have a name: they are highlighted in red in this table. Beware that in the eTrex 10 waypoints lists are limited to 50 entries (the neares ones). Fortunately if you spell-search the name, you will find also unlisted ones.

0x12	0x1200 Info
0x16	0x1600 Blank	0x1601	0x1602	0x1603	0x1604	0x1605	0x1606	0x1607	0x1608	0x1609	0x160a	0x160b	0x160c	0x160d	0x160e	0x160f	0x1610	0x1611	0x1612	0x1613	0x1614	0x1615	0x1616
0x1c	0x1c00 Obstruction	0x1c01 Wreck	0x1c02 Wreck	0x1c03 Wreck	0x1c04 Wreck	0x1c05 Obstruction	0x1c06 Obstruction	0x1c07 Obstruction	0x1c08 Obstruction	0x1c09 Obstruction	0x1c0a Obstruction	0x1c0b Obstruction	0x1c0c Obstruction	0x1c0d Obstruction	0x1c0e Obstruction	0x1c0f Obstruction	0x1c10 Obstruction	0x1c11 Obstruction	0x1c12 Obstruction	0x1c13 Obstruction	0x1c14 Obstruction	0x1c15 Obstruction	0x1c16 Obstruction	0x1c17 Obstruction	0x1c18 Obstruction	0x1c19 Obstruction	0x1c1a Obstruction	0x1c1b Obstruction	0x1c1c Obstruction	0x1c1d Obstruction	0x1c1e Obstruction	0x1c1f Obstruction
0x2a	0x2a00 Restaurant	0x2a01 Restaurant	0x2a02 Restaurant	0x2a03 Restaurant	0x2a04 Restaurant	0x2a05 Restaurant	0x2a06 Restaurant	0x2a07 Fastfood	0x2a08 Restaurant	0x2a09 Restaurant	0x2a0a Restaurant	0x2a0b Restaurant	0x2a0c Restaurant	0x2a0d Restaurant	0x2a0e Restaurant	0x2a0f Restaurant	0x2a10 Restaurant	0x2a11 Restaurant	0x2a12 Restaurant	0x2a13 Restaurant	0x2a14 Restaurant	0x2a15 Restaurant	0x2a16 Restaurant	0x2a17 Restaurant	0x2a18 Restaurant	0x2a19 Restaurant	0x2a1a Restaurant	0x2a1b Restaurant	0x2a1c Restaurant	0x2a1d Restaurant	0x2a1e Restaurant	0x2a1f Restaurant
0x2b	0x2b00 Hotel	0x2b01 Hotel	0x2b02 Hotel	0x2b03 Campground	0x2b04 Campground	0x2b05 Campground	0x2b06 Campground	0x2b07 Campground
0x2c	0x2c00 Amusement Park	0x2c01 Amusement Park	0x2c02 Museum	0x2c03 Libraries	0x2c04 Scenic Area	0x2c05 School	0x2c06 Park	0x2c07 Zoo	0x2c08 Ball Park	0x2c09 Museum	0x2c0a Wine	0x2c0b Dot White	0x2c0c Park	0x2c0d Place of worship	0x2c0e Place of worship	0x2c0f Place of worship	0x2c10 Place of worship	0x2c11 Museum	0x2c12 Museum	0x2c13 Park	0x2c14 School	0x2c15 School	0x2c16 Museum	0x2c17 Park	0x2c18 Dot White	0x2c19 Dot White	0x2c1a Dot White
0x2d	0x2d00 Movie Theater	0x2d01 Live Theater	0x2d02 Bar	0x2d03 Movie Theater	0x2d04 Casino	0x2d05 Golf Course	0x2d06 Skiing	0x2d07 Bowling	0x2d08 Iceskate	0x2d09 Swimming	0x2d0a Fitness Center	0x2d0b Airport	0x2d0c Bar	0x2d0d Bar	0x2d0e Bar	0x2d0f Bar	0x2d10 Movie Theater	0x2d11 Movie Theater	0x2d12 Park	0x2d13 Fitness Center
0x2e	0x2e00 Shopping Center	0x2e01 Department Store	0x2e02 Shopping Center	0x2e03 Department Store	0x2e04 Shopping Center	0x2e05 Pharmacy	0x2e06 Convenience Store	0x2e07 Department Store	0x2e08 Dot White	0x2e09 Dot White	0x2e0a Dot White	0x2e0b Dot White	0x2e0c Department Store	0x2e0d Department Store	0x2e0e Dot White
0x2f	0x2f00 Dot White	0x2f01 Fuel	0x2f02 Car Rental	0x2f03 Car Repair	0x2f04 Airport	0x2f05 Post Office	0x2f06 Dollar	0x2f07 Car	0x2f08 Bus	0x2f09 Anchor	0x2f0a Wrecker Service	0x2f0b Parking	0x2f0c Restroom	0x2f0d Car	0x2f0e Car	0x2f0f Garmin	0x2f10 Dot White	0x2f11 Dot White	0x2f12 Dot White	0x2f13 Dot White	0x2f14 Dot White	0x2f15 Dot White	0x2f16 Truck Stop	0x2f17 Dot White	0x2f18 Bus	0x2f19 Dot White	0x2f1a Dot White	0x2f1b Dot White	0x2f1c Dot White	0x2f1d Dollar	0x2f1e Dollar	0x2f1f Bus
0x30	0x3000 Building	0x3001 Police Station	0x3002 First Aid	0x3003 Public Office	0x3004 Building	0x3005 Building	0x3006 Border Crossing	0x3007 Dot White	0x3008 Dot White	0x3009 Police Station	0x300a Building	0x300b Building
0x3f	0x3f00 Dot White
0x40	0x4000 Golf Course
0x41	0x4100 Fish
0x42	0x4200 Wreck
0x43	0x4300 Anchor
0x44	0x4400 Fuel
0x45	0x4500 Restaurant
0x46	0x4600 Bar
0x47	0x4700 Boat
0x48	0x4800 Campground
0x49	0x4900 Park
0x4a	0x4a00 Picnic Area
0x4b	0x4b00 First Aid
0x4c	0x4c00 Information
0x4d	0x4d00 Parking
0x4e	0x4e00 Restroom
0x4f	0x4f00 Shower
0x50	0x5000 Drinking Water
0x51	0x5100 Telephone
0x52	0x5200 Scenic Area
0x53	0x5300 Skiing Area
0x54	0x5400 Swimming
0x55	0x5500 Dam
0x56	0x5600 Circle in square
0x57	0x5700 Obstruction
0x58	0x5800 Crossed diamond in square
0x59	0x5900 Airport	0x5901 Airport	0x5902 Airport	0x5903 Airport	0x5904 Heliport	0x5905 Airport
0x5a	0x5a00 Dot White
0x5d	0x5d00 Dot White
0x5f	0x5f00 Dot White
0x60	0x6000 Dot White
0x64	0x6400 Circle	0x6401 Bridge	0x6402 Building	0x6403 Cemetery	0x6404 Place of worship	0x6405 Flag with star	0x6406 Crossing	0x6407 Dam	0x6408 First Aid	0x6409 Levee	0x640a Circle	0x640b Military	0x640c Hammer and Spade	0x640d Oil Field	0x640e Park	0x640f Post Office	0x6410 Bell	0x6411 Tall Tower	0x6412 Trail	0x6413 Tunnel	0x6414 Drinking Water	0x6415 Watchtower	0x6416 Circle	0x6417 Circle	0x6418 Circle	0x6419 Circle	0x641a Circle	0x641b Circle	0x641c Circle	0x641d Circle	0x641e Circle	0x641f Circle
0x65	0x6500 White Diamond
0x66	0x6600 White Diamond	0x6601 White Diamond	0x6602 White Diamond	0x6603 White Diamond	0x6604 Beach	0x6605 White Diamond	0x6606 White Diamond	0x6607 White Diamond	0x6608 White Diamond	0x6609 White Diamond	0x660a Forest	0x660b White Diamond	0x660c White Diamond	0x660d White Diamond	0x660e White Diamond	0x660f White Diamond	0x6610 White Diamond	0x6611 White Diamond	0x6612 White Diamond	0x6613 White Diamond	0x6614 White Diamond	0x6615 White Diamond	0x6616 Summit	0x6617 White Diamond	0x6618 Forest	0x6619 White Diamond	0x661a White Diamond	0x661b White Diamond	0x661c White Diamond	0x661d White Diamond	0x661e White Diamond	0x661f White Diamond
0x67	0x6700 Dot White
0x6f	0x6f00 Dot White
