Chapter 12. File, Directory and Share Access Controls

John H. Terpstra

Samba Team

Jeremy Allison

Samba Team

Jelmer R. Vernooij

The Samba Team

May 10, 2003

Table of Contents

Features and Benefits
File System Access Controls
MS Windows NTFS Comparison with UNIX File Systems
Managing Directories
File and Directory Access Control
Share Definition Access Controls
User and Group-Based Controls
File and Directory Permissions-Based Controls
Miscellaneous Controls
Access Controls on Shares
Share Permissions Management
MS Windows Access Control Lists and UNIX Interoperability
Managing UNIX Permissions Using NT Security Dialogs
Viewing File Security on a Samba Share
Viewing File Ownership
Viewing File or Directory Permissions
Modifying File or Directory Permissions
Interaction with the Standard Samba create mask Parameters
Interaction with the Standard Samba File Attribute Mapping
Common Errors
Users Cannot Write to a Public Share
File Operations Done as root with force user Set
MS Word with Samba Changes Owner of File

Advanced MS Windows users are frequently perplexed when file, directory and share manipulation of resources shared via Samba do not behave in the manner they might expect. MS Windows network administrators are often confused regarding network access controls and how to provide users with the access they need while protecting resources from unauthorized access.

Many UNIX administrators are unfamiliar with the MS Windows environment and in particular have difficulty in visualizing what the MS Windows user wishes to achieve in attempts to set file and directory access permissions.

The problem lies in the differences in how file and directory permissions and controls work between the two environments. This difference is one that Samba cannot completely hide, even though it does try to bridge the chasm to a degree.

POSIX Access Control List technology has been available (along with Extended Attributes) for UNIX for many years, yet there is little evidence today of any significant use. This explains to some extent the slow adoption of ACLs into commercial Linux products. MS Windows administrators are astounded at this, given that ACLs were a foundational capability of the now decade-old MS Windows NT operating system.

The purpose of this chapter is to present each of the points of control that are possible with Samba-3 in the hope that this will help the network administrator to find the optimum method for delivering the best environment for MS Windows desktop users.

This is an opportune point to mention that Samba was created to provide a means of interoperability and interchange of data between differing operating environments. Samba has no intent to change UNIX/Linux into a platform like MS Windows. Instead the purpose was and is to provide a sufficient level of exchange of data between the two environments. What is available today extends well beyond early plans and expectations, yet the gap continues to shrink.

Features and Benefits

Samba offers a lot of flexibility in file system access management. These are the key access control facilities present in Samba today:

Samba Access Control Facilities

  • UNIX File and Directory Permissions

    Samba honors and implements UNIX file system access controls. Users who access a Samba server will do so as a particular MS Windows user. This information is passed to the Samba server as part of the logon or connection setup process. Samba uses this user identity to validate whether or not the user should be given access to file system resources (files and directories). This chapter provides an overview for those to whom the UNIX permissions and controls are a little strange or unknown.

  • Samba Share Definitions

    In configuring share settings and controls in the smb.conf file, the network administrator can exercise overrides to native file system permissions and behaviors. This can be handy and convenient to effect behavior that is more like what MS Windows NT users expect but it is seldom the best way to achieve this. The basic options and techniques are described herein.

  • Samba Share ACLs

    Just like it is possible in MS Windows NT to set ACLs on shares themselves, so it is possible to do this in Samba. Few people make use of this facility, yet it remains one of the easiest ways to affect access controls (restrictions) and can often do so with minimum invasiveness compared with other methods.

  • MS Windows ACLs through UNIX POSIX ACLs

    The use of POSIX ACLs on UNIX/Linux is possible only if the underlying operating system supports them. If not, then this option will not be available to you. Current UNIX technology platforms have native support for POSIX ACLs. There are patches for the Linux kernel that also provide this. Sadly, few Linux platforms ship today with native ACLs and Extended Attributes enabled. This chapter has pertinent information for users of platforms that support them.

File System Access Controls

Perhaps the most important recognition to be made is the simple fact that MS Windows NT4/200x/XP implement a totally divergent file system technology from what is provided in the UNIX operating system environment. First we consider what the most significant differences are, then we look at how Samba helps to bridge the differences.

MS Windows NTFS Comparison with UNIX File Systems

Samba operates on top of the UNIX file system. This means it is subject to UNIX file system conventions and permissions. It also means that if the MS Windows networking environment requires file system behavior that differs from UNIX file system behavior then somehow Samba is responsible for emulating that in a transparent and consistent manner.

It is good news that Samba does this to a large extent and on top of that provides a high degree of optional configuration to override the default behavior. We look at some of these over-rides, but for the greater part we will stay within the bounds of default behavior. Those wishing to explore the depths of control ability should review the smb.conf man page.

The following compares file system features for UNIX with those of Microsoft Windows NT/200x:

Name Space

MS Windows NT4/200x/XP files names may be up to 254 characters long, and UNIX file names may be 1023 characters long. In MS Windows, file extensions indicate particular file types, in UNIX this is not so rigorously observed as all names are considered arbitrary.

What MS Windows calls a folder, UNIX calls a directory.

Case Sensitivity

MS Windows file names are generally upper case if made up of 8.3 (8 character file name and 3 character extension. File names that are longer than 8.3 are case preserving and case insensitive.

UNIX file and directory names are case sensitive and case preserving. Samba implements the MS Windows file name behavior, but it does so as a user application. The UNIX file system provides no mechanism to perform case insensitive file name lookups. MS Windows does this by default. This means that Samba has to carry the processing overhead to provide features that are not native to the UNIX operating system environment.

Consider the following. All are unique UNIX names but one single MS Windows file name:


So clearly, in an MS Windows file name space these three files cannot co-exist, but in UNIX they can.

So what should Samba do if all three are present? That which is lexically first will be accessible to MS Windows users, the others are invisible and unaccessible any other solution would be suicidal.

Directory Separators

MS Windows and DOS uses the backslash \ as a directory delimiter, and UNIX uses the forward-slash / as its directory delimiter. This is handled transparently by Samba.

Drive Identification

MS Windows products support a notion of drive letters, like C: to represent disk partitions. UNIX has no concept of separate identifiers for file partitions, each such file system is mounted to become part of the overall directory tree. The UNIX directory tree begins at / just like the root of a DOS drive is specified as C:\.

File Naming Conventions

MS Windows generally never experiences file names that begin with a dot (.) while in UNIX these are commonly found in a user's home directory. Files that begin with a dot (.) are typically either start-up files for various UNIX applications, or they may be files that contain start-up configuration data.

Links and Short-Cuts

MS Windows make use of “links and short-cuts” that are actually special types of files that will redirect an attempt to execute the file to the real location of the file. UNIX knows of file and directory links, but they are entirely different from what MS Windows users are used to.

Symbolic links are files in UNIX that contain the actual location of the data (file or directory). An operation (like read or write) will operate directly on the file referenced. Symbolic links are also referred to as “soft links.” A hard link is something that MS Windows is not familiar with. It allows one physical file to be known simultaneously by more than one file name.

There are many other subtle differences that may cause the MS Windows administrator some temporary discomfort in the process of becoming familiar with UNIX/Linux. These are best left for a text that is dedicated to the purpose of UNIX/Linux training and education.

Managing Directories

There are three basic operations for managing directories: create, delete, rename.

Table 12.1. Managing Directories with UNIX and Windows

ActionMS Windows CommandUNIX Command
createmd foldermkdir folder
deleterd folderrmdir folder
renamerename oldname newnamemv oldname newname

File and Directory Access Control

The network administrator is strongly advised to read foundational training manuals and reference materials regarding file and directory permissions maintenance. Much can be achieved with the basic UNIX permissions without having to resort to more complex facilities like POSIX Access Control Lists (ACLs) or Extended Attributes (EAs).

UNIX/Linux file and directory access permissions involves setting three primary sets of data and one control set. A UNIX file listing looks as follows:

$ ls -la
total 632
drwxr-xr-x   13 maryo   gnomes      816 2003-05-12 22:56 .
drwxrwxr-x   37 maryo   gnomes     3800 2003-05-12 22:29 ..
dr-xr-xr-x    2 maryo   gnomes       48 2003-05-12 22:29 muchado02
drwxrwxrwx    2 maryo   gnomes       48 2003-05-12 22:29 muchado03
drw-rw-rw-    2 maryo   gnomes       48 2003-05-12 22:29 muchado04
d-w--w--w-    2 maryo   gnomes       48 2003-05-12 22:29 muchado05
dr--r--r--    2 maryo   gnomes       48 2003-05-12 22:29 muchado06
drwsrwsrwx    2 maryo   gnomes       48 2003-05-12 22:29 muchado08
----------    1 maryo   gnomes     1242 2003-05-12 22:31 mydata00.lst
--w--w--w-    1 maryo   gnomes     7754 2003-05-12 22:33 mydata02.lst
-r--r--r--    1 maryo   gnomes    21017 2003-05-12 22:32 mydata04.lst
-rw-rw-rw-    1 maryo   gnomes    41105 2003-05-12 22:32 mydata06.lst

The columns above represent (from left to right): permissions, number of hard links to file, owner, group, size (bytes), access date, access time, file name.

An overview of the permissions field can be found in Overview of UNIX permissions field.

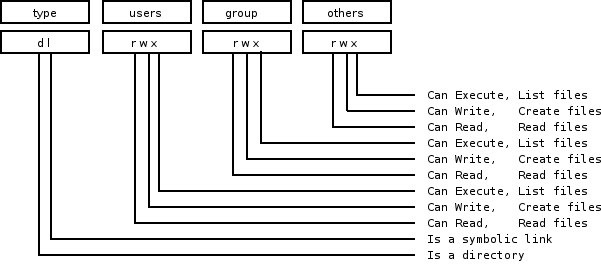

Figure 12.1. Overview of UNIX permissions field.

Overview of UNIX permissions field.

Any bit flag may be unset. An unset bit flag is the equivalent of “cannot” and is represented as a “-” character.

Example 12.1. Example File

		-rwxr-x---   Means: The owner (user) can read, write, execute
		                    the group can read and execute
		                    everyone else cannot do anything with it.

Additional possibilities in the [type] field are: c = character device, b = block device, p = pipe device, s = UNIX Domain Socket.

The letters rwxXst set permissions for the user, group and others as: read (r), write (w), execute (or access for directories) (x), execute only if the file is a directory or already has execute permission for some user (X), set user or group ID on execution (s), sticky (t).

When the sticky bit is set on a directory, files in that directory may be unlinked (deleted) or renamed only by root or their owner. Without the sticky bit, anyone able to write to the directory can delete or rename files. The sticky bit is commonly found on directories, such as /tmp, that are world-writable.

When the set user or group ID bit (s) is set on a directory, then all files created within it will be owned by the user and/or group whose `set user or group' bit is set. This can be helpful in setting up directories for which it is desired that all users who are in a group should be able to write to and read from a file, particularly when it is undesirable for that file to be exclusively owned by a user whose primary group is not the group that all such users belong to.

When a directory is set d-wx--x--- this means that the owner can read and create (write) files in it, but because the (r) read flags are not set, files cannot be listed (seen) in the directory by anyone. The group can read files in the directory but cannot create new files. If files in the directory are set to be readable and writable for the group, then group members will be able to write to (or delete) them.

Share Definition Access Controls

The following parameters in the smb.conf file sections define a share control or effect access controls. Before using any of the following options, please refer to the man page for smb.conf.

User and Group-Based Controls

User and group-based controls can prove quite useful. In some situations it is distinctly desirable to affect all file system operations as if a single user were doing so. The use of the force user and force group behavior will achieve this. In other situations it may be necessary to effect a paranoia level of control to ensure that only particular authorized persons will be able to access a share or its contents. Here the use of the valid users or the invalid users may be most useful.

As always, it is highly advisable to use the least difficult to maintain and the least ambiguous method for controlling access. Remember, when you leave the scene someone else will need to provide assistance and if he finds too great a mess or does not understand what you have done, there is risk of Samba being removed and an alternative solution being adopted.

Following table enumerates these controls.

Table 12.2. User and Group Based Controls

Control ParameterDescription - Action - Notes
admin users

List of users who will be granted administrative privileges on the share. They will do all file operations as the super-user (root). Any user in this list will be able to do anything they like on the share, irrespective of file permissions.

force group

Specifies a UNIX group name that will be assigned as the default primary group for all users connecting to this service.

force user

Specifies a UNIX user name that will be assigned as the default user for all users connecting to this service. This is useful for sharing files. Incorrect use can cause security problems.

guest ok

If this parameter is set for a service, then no password is required to connect to the service. Privileges will be those of the guest account.

invalid users

List of users that should not be allowed to login to this service.

only user

Controls whether connections with usernames not in the user list will be allowed.

read list

List of users that are given read-only access to a service. Users in this list will not be given write access, no matter what the read only option is set to.


Refer to the smb.conf man page for more information -- this is a complex and potentially misused parameter.

valid users

List of users that should be allowed to login to this service.

write list

List of users that are given read-write access to a service.

File and Directory Permissions-Based Controls

The following file and directory permission-based controls, if misused, can result in considerable difficulty to diagnose causes of misconfiguration. Use them sparingly and carefully. By gradually introducing each one by one, undesirable side effects may be detected. In the event of a problem, always comment all of them out and then gradually reintroduce them in a controlled way.

Refer to the following table for information regarding the parameters that may be used to affect file and directory permission-based access controls.

Table 12.3. File and Directory Permission Based Controls

Control ParameterDescription - Action - Notes
create mask

Refer to the smb.conf man page.

directory mask

The octal modes used when converting DOS modes to UNIX modes when creating UNIX directories. See also: directory security mask.

dos filemode

Enabling this parameter allows a user who has write access to the file to modify the permissions on it.

force create mode

This parameter specifies a set of UNIX mode bit permissions that will always be set on a file created by Samba.

force directory mode

This parameter specifies a set of UNIX mode bit permissions that will always be set on a directory created by Samba.

force directory security mode

Controls UNIX permission bits modified when a Windows NT client is manipulating UNIX permissions on a directory.

force security mode

Controls UNIX permission bits modified when a Windows NT client manipulates UNIX permissions.

hide unreadable

Prevents clients from seeing the existence of files that cannot be read.

hide unwriteable files

Prevents clients from seeing the existence of files that cannot be written to. Unwriteable directories are shown as usual.

nt acl support

This parameter controls whether smbd will attempt to map UNIX permissions into Windows NT access control lists.

security mask

Controls UNIX permission bits modified when a Windows NT client is manipulating the UNIX permissions on a file.

Miscellaneous Controls

The following are documented because of the prevalence of administrators creating inadvertent barriers to file access by not understanding the full implications of smb.conf file settings. See following table.

Table 12.4. Other Controls

Control ParameterDescription - Action - Notes
case sensitive, default case, short preserve case

This means that all file name lookup will be done in a case sensitive manner. Files will be created with the precise file name Samba received from the MS Windows client.

csc policy

Client Side Caching Policy - parallels MS Windows client side file caching capabilities.

dont descend

Allows specifying a comma-delimited list of directories that the server should always show as empty.

dos filetime resolution

This option is mainly used as a compatibility option for Visual C++ when used against Samba shares.

dos filetimes

DOS and Windows allow users to change file time stamps if they can write to the file. POSIX semantics prevent this. This option allows DOS and Windows behavior.

fake oplocks

Oplocks are the way that SMB clients get permission from a server to locally cache file operations. If a server grants an oplock, the client is free to assume that it is the only one accessing the file and it will aggressively cache file data.

hide dot files, hide files, veto files

Note: MS Windows Explorer allows over-ride of files marked as hidden so they will still be visible.

read only

If this parameter is yes, then users of a service may not create or modify files in the service's directory.

veto files

List of files and directories that are neither visible nor accessible.

Access Controls on Shares

This section deals with how to configure Samba per share access control restrictions. By default, Samba sets no restrictions on the share itself. Restrictions on the share itself can be set on MS Windows NT4/200x/XP shares. This can be an effective way to limit who can connect to a share. In the absence of specific restrictions the default setting is to allow the global user Everyone - Full Control (full control, change and read).

At this time Samba does not provide a tool for configuring access control setting on the share itself. Samba does have the capacity to store and act on access control settings, but the only way to create those settings is to use either the NT4 Server Manager or the Windows 200x MMC for Computer Management.

Samba stores the per share access control settings in a file called share_info.tdb. The location of this file on your system will depend on how Samba was compiled. The default location for Samba's tdb files is under /usr/local/samba/var. If the tdbdump utility has been compiled and installed on your system, then you can examine the contents of this file by executing: tdbdump share_info.tdb in the directory containing the tdb files.

Share Permissions Management

The best tool for the task is platform dependant. Choose the best tool for your environment.

Windows NT4 Workstation/Server

The tool you need to use to manage share permissions on a Samba server is the NT Server Manager. Server Manager is shipped with Windows NT4 Server products but not with Windows NT4 Workstation. You can obtain the NT Server Manager for MS Windows NT4 Workstation from Microsoft see details below.

Procedure 12.1. Instructions

  1. Launch the NT4 Server Manager, click on the Samba server you want to administer. From the menu select Computer, then click on Shared Directories.

  2. Click on the share that you wish to manage, then click the Properties tab. then click the Permissions tab. Now you can add or change access control settings as you wish.

Windows 200x/XP

On MS Windows NT4/200x/XP system access control lists on the share itself are set using native tools, usually from File Manager. For example, in Windows 200x, right click on the shared folder, then select Sharing, then click on Permissions. The default Windows NT4/200x permission allows “Everyone” full control on the share.

MS Windows 200x and later versions come with a tool called the Computer Management snap-in for the Microsoft Management Console (MMC). This tool is located by clicking on Control Panel -> Administrative Tools -> Computer Management.

Procedure 12.2. Instructions

  1. After launching the MMC with the Computer Management snap-in, click the menu item Action, and select Connect to another computer. If you are not logged onto a domain you will be prompted to enter a domain login user identifier and a password. This will authenticate you to the domain. If you are already logged in with administrative privilege, this step is not offered.

  2. If the Samba server is not shown in the Select Computer box, type in the name of the target Samba server in the field Name:. Now click the on [+] next to System Tools, then on the [+] next to Shared Folders in the left panel.

  3. In the right panel, double-click on the share on which you wish to set access control permissions. Then click the tab Share Permissions. It is now possible to add access control entities to the shared folder. Remember to set what type of access (full control, change, read) you wish to assign for each entry.


Be careful. If you take away all permissions from the Everyone user without removing this user, effectively no user will be able to access the share. This is a result of what is known as ACL precedence. Everyone with no access means that MaryK who is part of the group Everyone will have no access even if she is given explicit full control access.

MS Windows Access Control Lists and UNIX Interoperability

Managing UNIX Permissions Using NT Security Dialogs

Windows NT clients can use their native security settings dialog box to view and modify the underlying UNIX permissions.

This ability is careful not to compromise the security of the UNIX host on which Samba is running, and still obeys all the file permission rules that a Samba administrator can set.

Samba does not attempt to go beyond POSIX ACLs, so the various finer-grained access control options provided in Windows are actually ignored.


All access to UNIX/Linux system files via Samba is controlled by the operating system file access controls. When trying to figure out file access problems, it is vitally important to find the identity of the Windows user as it is presented by Samba at the point of file access. This can best be determined from the Samba log files.

Viewing File Security on a Samba Share

From an NT4/2000/XP client, right click on any file or directory in a Samba-mounted drive letter or UNC path. When the menu pops up, click on the Properties entry at the bottom of the menu. This brings up the file Properties dialog box. Click on the Security tab and you will see three buttons: Permissions, Auditing, and Ownership. The Auditing button will cause either an error message `A requested privilege is not held by the client' to appear if the user is not the NT Administrator, or a dialog which is intended to allow an Administrator to add auditing requirements to a file if the user is logged on as the NT Administrator. This dialog is non-functional with a Samba share at this time, as the only useful button, the Add button, will not currently allow a list of users to be seen.

Viewing File Ownership

Clicking on the Ownership button brings up a dialog box telling you who owns the given file. The owner name will be displayed like this:

SERVER\user (Long name)

SERVER is the NetBIOS name of the Samba server, user is the user name of the UNIX user who owns the file, and (Long name) is the descriptive string identifying the user (normally found in the GECOS field of the UNIX password database). Click on the Close button to remove this dialog.

If the parameter nt acl support is set to false, the file owner will be shown as the NT user Everyone.

The Take Ownership button will not allow you to change the ownership of this file to yourself (clicking it will display a dialog box complaining that the user you are currently logged onto the NT client cannot be found). The reason for this is that changing the ownership of a file is a privileged operation in UNIX, available only to the root user. As clicking on this button causes NT to attempt to change the ownership of a file to the current user logged into the NT client, this will not work with Samba at this time.

There is an NT chown command that will work with Samba and allow a user with Administrator privilege connected to a Samba server as root to change the ownership of files on both a local NTFS filesystem or remote mounted NTFS or Samba drive. This is available as part of the Seclib NT security library written by Jeremy Allison of the Samba Team, and is available from the main Samba FTP site.

Viewing File or Directory Permissions

The third button is the Permissions button. Clicking on this brings up a dialog box that shows both the permissions and the UNIX owner of the file or directory. The owner is displayed like this:

SERVER\ user (Long name)

Where SERVER is the NetBIOS name of the Samba server, user is the user name of the UNIX user who owns the file, and (Long name) is the descriptive string identifying the user (normally found in the GECOS field of the UNIX password database).

If the parameter nt acl support is set to false, the file owner will be shown as the NT user Everyone and the permissions will be shown as NT “Full Control”.

The permissions field is displayed differently for files and directories, so I'll describe the way file permissions are displayed first.

File Permissions

The standard UNIX user/group/world triplet and the corresponding read, write, execute permissions triplets are mapped by Samba into a three element NT ACL with the “r”, “w” and “x” bits mapped into the corresponding NT permissions. The UNIX world permissions are mapped into the global NT group Everyone, followed by the list of permissions allowed for UNIX world. The UNIX owner and group permissions are displayed as an NT user icon and an NT local group icon, respectively, followed by the list of permissions allowed for the UNIX user and group.

Because many UNIX permission sets do not map into common NT names such as read, change or full control, usually the permissions will be prefixed by the words Special Access in the NT display list.

But what happens if the file has no permissions allowed for a particular UNIX user group or world component? In order to allow “no permissions” to be seen and modified Samba then overloads the NT Take Ownership ACL attribute (which has no meaning in UNIX) and reports a component with no permissions as having the NT O bit set. This was chosen, of course, to make it look like a zero, meaning zero permissions. More details on the decision behind this is given below.

Directory Permissions

Directories on an NT NTFS file system have two different sets of permissions. The first set is the ACL set on the directory itself, which is usually displayed in the first set of parentheses in the normal RW NT style. This first set of permissions is created by Samba in exactly the same way as normal file permissions are, described above, and is displayed in the same way.

The second set of directory permissions has no real meaning in the UNIX permissions world and represents the inherited permissions that any file created within this directory would inherit.

Samba synthesizes these inherited permissions for NT by returning as an NT ACL the UNIX permission mode that a new file created by Samba on this share would receive.

Modifying File or Directory Permissions

Modifying file and directory permissions is as simple as changing the displayed permissions in the dialog box, and clicking on OK. However, there are limitations that a user needs to be aware of, and also interactions with the standard Samba permission masks and mapping of DOS attributes that need to also be taken into account.

If the parameter nt acl support is set to false, any attempt to set security permissions will fail with an `Access Denied' message.

The first thing to note is that the Add button will not return a list of users in Samba (it will give an error message saying `The remote procedure call failed and did not execute'). This means that you can only manipulate the current user/group/world permissions listed in the dialog box. This actually works quite well as these are the only permissions that UNIX actually has.

If a permission triplet (either user, group, or world) is removed from the list of permissions in the NT dialog box, then when the OK button is pressed it will be applied as “no permissions” on the UNIX side. If you then view the permissions again, the “no permissions” entry will appear as the NT O flag, as described above. This allows you to add permissions back to a file or directory once you have removed them from a triplet component.

As UNIX supports only the “r”, “w” and “x” bits of an NT ACL, if other NT security attributes such as Delete Access are selected they will be ignored when applied on the Samba server.

When setting permissions on a directory, the second set of permissions (in the second set of parentheses) is by default applied to all files within that directory. If this is not what you want, you must un-check the Replace permissions on existing files check-box in the NT dialog before clicking on OK.

If you wish to remove all permissions from a user/group/world component, you may either highlight the component and click on the Remove button, or set the component to only have the special Take Ownership permission (displayed as O ) highlighted.

Interaction with the Standard Samba “create mask” Parameters

There are four parameters that control interaction with the standard Samba create mask parameters. These are:

  • security mask
  • force security mode
  • directory security mask
  • force directory security mode

Once a user clicks on OK to apply the permissions, Samba maps the given permissions into a user/group/world r/w/x triplet set, and then checks the changed permissions for a file against the bits set in the security mask parameter. Any bits that were changed that are not set to “1” in this parameter are left alone in the file permissions.

Essentially, zero bits in the security mask may be treated as a set of bits the user is not allowed to change, and one bits are those the user is allowed to change.

If not explicitly set, this parameter defaults to the same value as the create mask parameter. To allow a user to modify all the user/group/world permissions on a file, set this parameter to 0777.

Next Samba checks the changed permissions for a file against the bits set in the force security mode parameter. Any bits that were changed that correspond to bits set to “1” in this parameter are forced to be set.

Essentially, bits set in the force security mode parameter may be treated as a set of bits that, when modifying security on a file, the user has always set to be “on”.

If not explicitly set, this parameter defaults to the same value as the force create mode parameter. To allow a user to modify all the user/group/world permissions on a file with no restrictions set this parameter to 000. The security mask and force security mode parameters are applied to the change request in that order.

For a directory, Samba will perform the same operations as described above for a file except it uses the parameter directory security mask instead of security mask, and force directory security mode parameter instead of force security mode .

The directory security mask parameter by default is set to the same value as the directory mask parameter and the force directory security mode parameter by default is set to the same value as the force directory mode parameter. In this way Samba enforces the permission restrictions that an administrator can set on a Samba share, while still allowing users to modify the permission bits within that restriction.

If you want to set up a share that allows users full control in modifying the permission bits on their files and directories and does not force any particular bits to be set “on”, then set the following parameters in the smb.conf file in that share-specific section:

security mask = 0777
force security mode = 0
directory security mask = 0777
force directory security mode = 0

Interaction with the Standard Samba File Attribute Mapping


Samba maps some of the DOS attribute bits (such as “read only”) into the UNIX permissions of a file. This means there can be a conflict between the permission bits set via the security dialog and the permission bits set by the file attribute mapping.

If a file has no UNIX read access for the owner, it will show up as “read only” in the standard file attributes tabbed dialog. Unfortunately, this dialog is the same one that contains the security information in another tab.

What this can mean is that if the owner changes the permissions to allow himself read access using the security dialog, clicks on OK to get back to the standard attributes tab dialog, and clicks on OK on that dialog, then NT will set the file permissions back to read-only (as that is what the attributes still say in the dialog). This means that after setting permissions and clicking on OK to get back to the attributes dialog, you should always press Cancel rather than OK to ensure that your changes are not overridden.

Common Errors

File, directory and share access problems are common on the mailing list. The following are examples taken from the mailing list in recent times.

Users Cannot Write to a Public Share

We are facing some troubles with file/directory permissions. I can log on the domain as admin user(root), and there's a public share on which everyone needs to have permission to create/modify files, but only root can change the file, no one else can. We need to constantly go to the server to chgrp -R users * and chown -R nobody * to allow others users to change the file.

There are many ways to solve this problem and here are a few hints:

  1. Go to the top of the directory that is shared.

  2. Set the ownership to what ever public owner and group you want

    $ find 'directory_name' -type d -exec chown {}\;
    $ find 'directory_name' -type d -exec chmod 1775 'directory_name'
    $ find 'directory_name' -type f -exec chmod 0775 {} \;
    $ find 'directory_name' -type f -exec chown {}\;


    The above will set the sticky bit on all directories. Read your UNIX/Linux man page on what that does. It causes the OS to assign to all files created in the directories the ownership of the directory.

  3. Directory is: /foodbar

    $ chown jack.engr /foodbar


    This is the same as doing:

    $ chown jack /foodbar
    $ chgrp engr /foodbar

  4. Now type:

    $ chmod 6775 /foodbar
    $ ls -al /foodbar/..

    You should see:

    drwsrwsr-x  2 jack  engr    48 2003-02-04 09:55 foodbar

  5. Now type:

    $ su - jill
    $ cd /foodbar
    $ touch Afile
    $ ls -al

    You should see that the file Afile created by Jill will have ownership and permissions of Jack, as follows:

    -rw-r--r--  1 jack  engr     0 2003-02-04 09:57 Afile

  6. Now in your smb.conf for the share add:

    force create mode = 0775
    force directory mode = 6775


    These procedures are needed only if your users are not members of the group you have used. That is if within the OS do not have write permission on the directory.

    An alternative is to set in the smb.conf entry for the share:

    force user = jack
    force group = engr

File Operations Done as root with force user Set

When you have a user in admin users, Samba will always do file operations for this user as root, even if force user has been set.

MS Word with Samba Changes Owner of File

Question:When user B saves a word document that is owned by user A the updated file is now owned by user B. Why is Samba doing this? How do I fix this?

Answer: Word does the following when you modify/change a Word document: MS Word creates a NEW document with a temporary name, Word then closes the old document and deletes it, Word then renames the new document to the original document name. There is no mechanism by which Samba can in any way know that the new document really should be owned by the owners of the original file. Samba has no way of knowing that the file will be renamed by MS Word. As far as Samba is able to tell, the file that gets created is a NEW file, not one that the application (Word) is updating.

There is a work-around to solve the permissions problem. That work-around involves understanding how you can manage file system behavior from within the smb.conf file, as well as understanding how UNIX file systems work. Set on the directory in which you are changing Word documents: chmod g+s `directory_name' This ensures that all files will be created with the group that owns the directory. In smb.conf share declaration section set:

force create mode = 0660
force directory mode = 0770

These two settings will ensure that all directories and files that get created in the share will be read/writable by the owner and group set on the directory itself.
