Xiaomi Redmi 6 Android Phone

A brief review focused on obtaining root privileges and software de-bloating.

Good quality/price ratio.
3 Gb RAM.
Android Oreo 8.1.
Unfriendly rooting procedure with some unsolved issues.
Bootloader unlock requires MS-Windows software.
MIUI O.S. filled with bloatware.
Double privacy leak: Google and Xiaomi apps.
Non replaceable battery.
Proximity sensor problem: fails when closer than one centimeter.
Model Redmi 6
Model Name M1804C3DG
RAM 3.0 Gb
Internal Memory 32 Gb
CPU Octa-core 2.0 GHz Cortex-A53
Screen 5.45 inches, 720 x 1440
Battery Non replaceable
Connector Micro USB
Audio jack 3.5 mm
Android 8.1.0
MIUI Version Global 10.3 Stable 10.3.2.0 (OCGMIXM)
A/B (Seamless) System Updates No. Blank result at command:
fastboot getvar current-slot
Anti-Rollback Protection No. Blank result at command:
fastboot getvar anti

How to gain root privileges: the temporal block

Unfortunately this Xiaomi phone has a very annoying procedure to unlock the bootloader: it is mandatory to execute an on-line procedure using a PC running an MS-Windows program, on the phone you have to enable the mobile internet connection (thus requiring a valid SIM card) and execute an app which will collect several data from the phone (ID CPU, IMEI, IMSI etc.). Once you start the procedure, you will be granted the right to unlock the bootloader, but with a wait time of several days. In my case the delay was 358 hours (about 15 days).

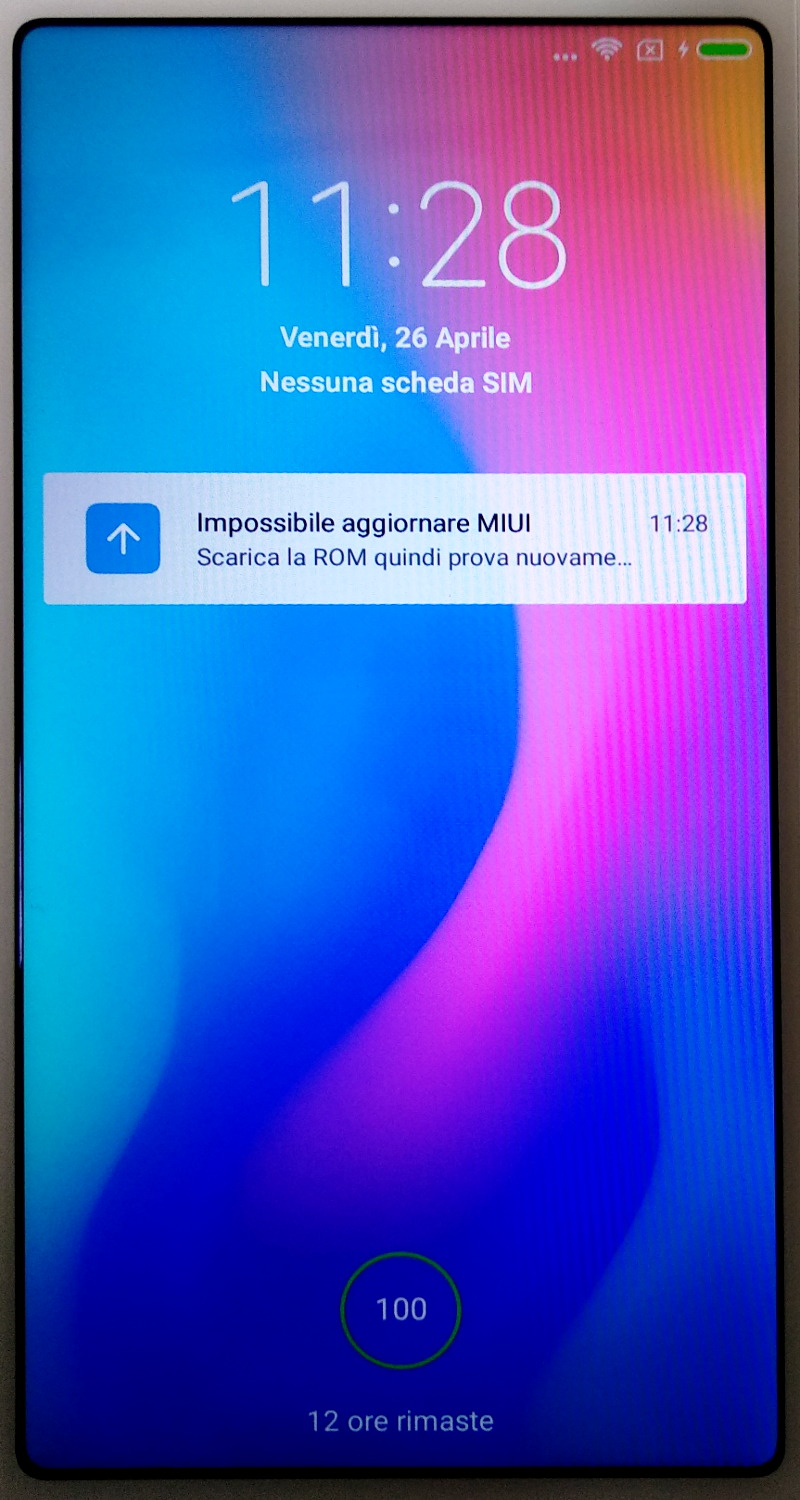

First Run: Failed System Update

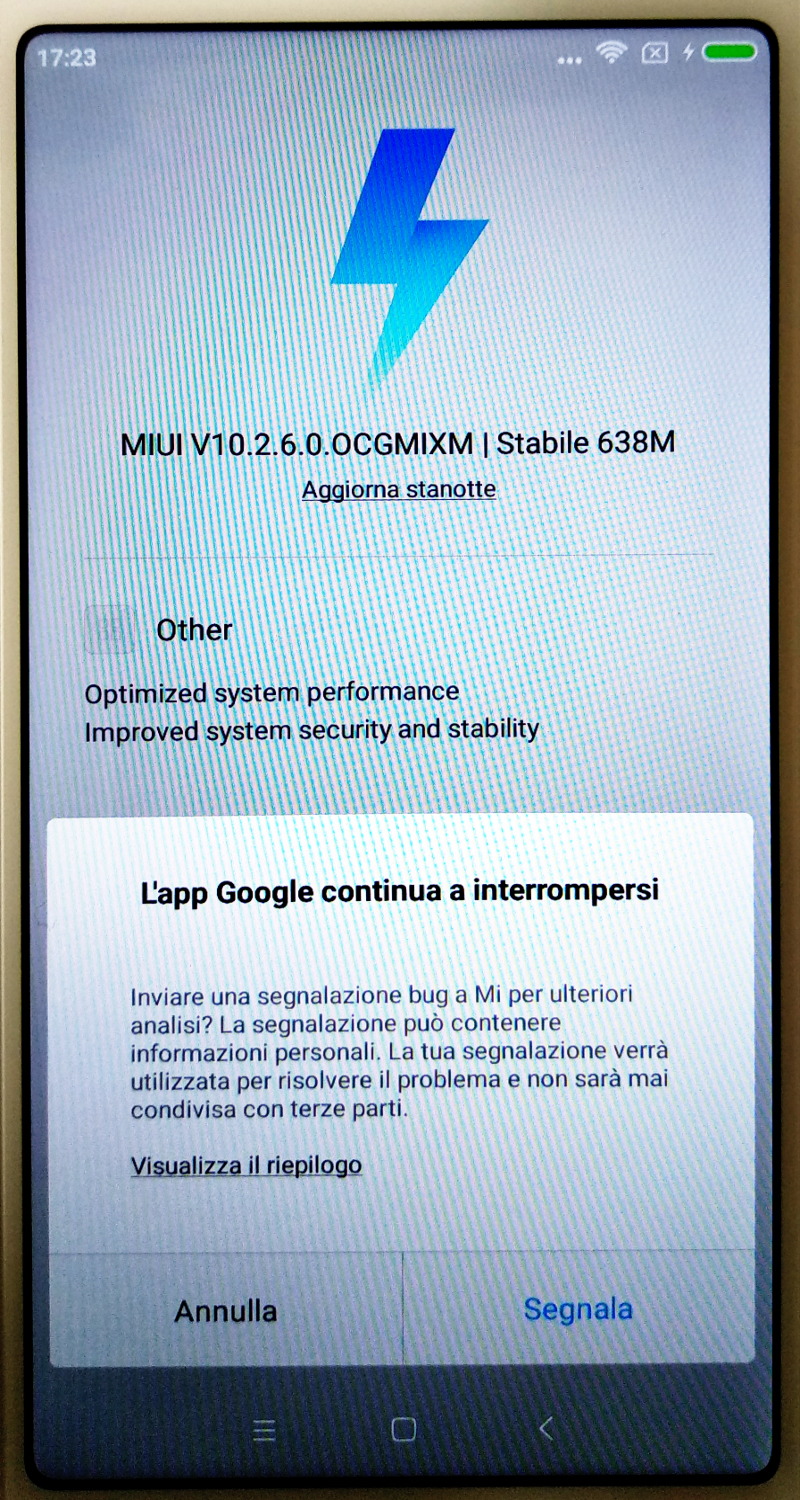

At the first run - once added a Google account and activated a WiFi connection - the phone suggested to update the operating system; the proposed update was MIUI V10.2.6.0.OCGMIXM Stabile 638 Mb. The upgrade failed: the download phase was plagued by error messages like L'app Google continua a interrompersi (Google App Keeps Stopping) and similar messages from other apps. Once downloaded the upadte, the phone rebooted. On the black screen there was the message Aggiornamento MIUI in corso, non riavviare il dispositivo, then an error message informed that the upgrade failed. The phone rebooted and a popup informed that the upgrade failed, suggesting to retry the ROM download.

Second Run: System Update

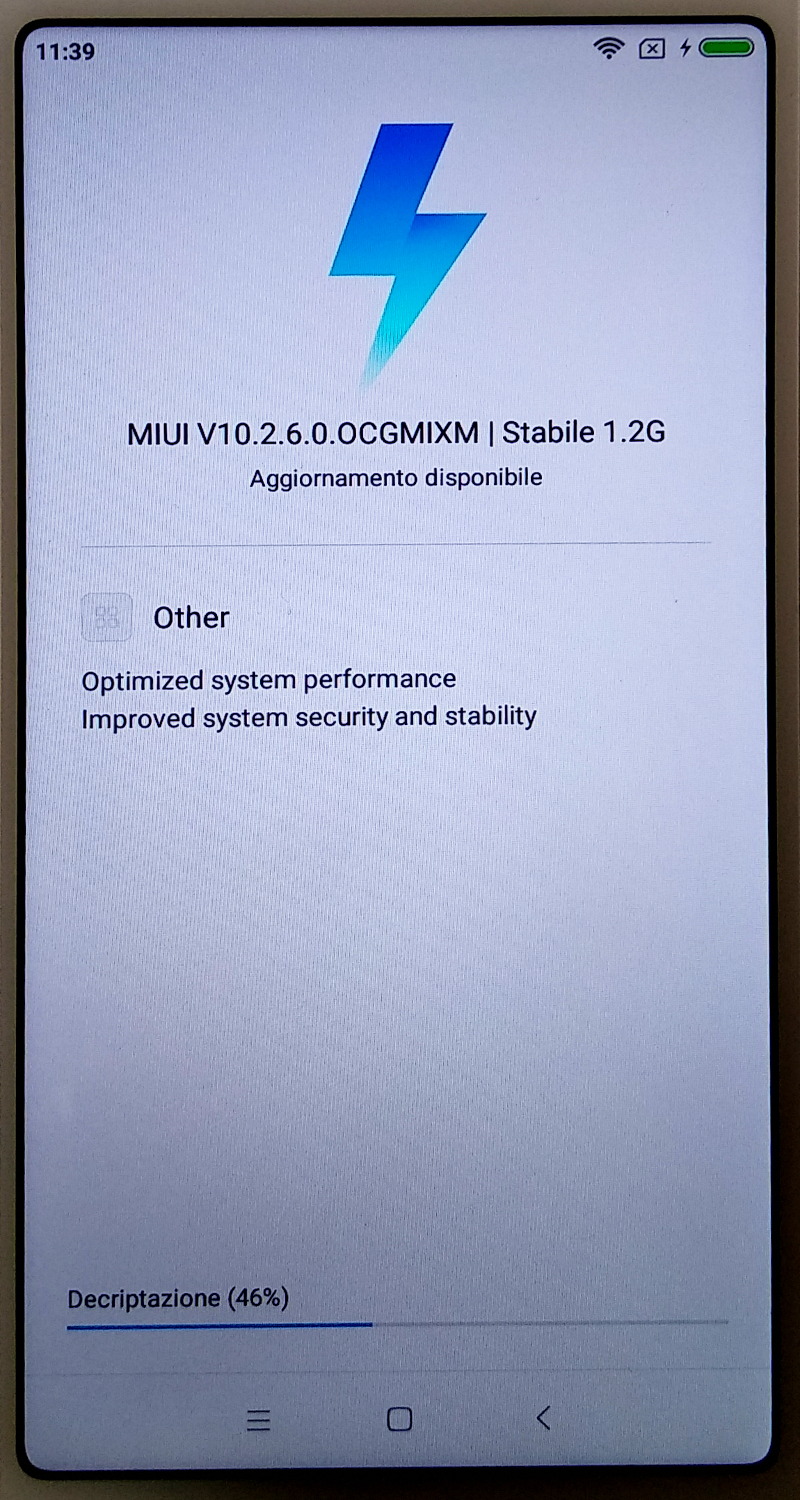

At the second try, the system suggested to download the update MIUI V10.2.6.0.OCGMIXM Stabile 1.2 Gb (notice 1.2 Gb, instead of 638 Mb of the previous run). This run completed successfully, the system is:

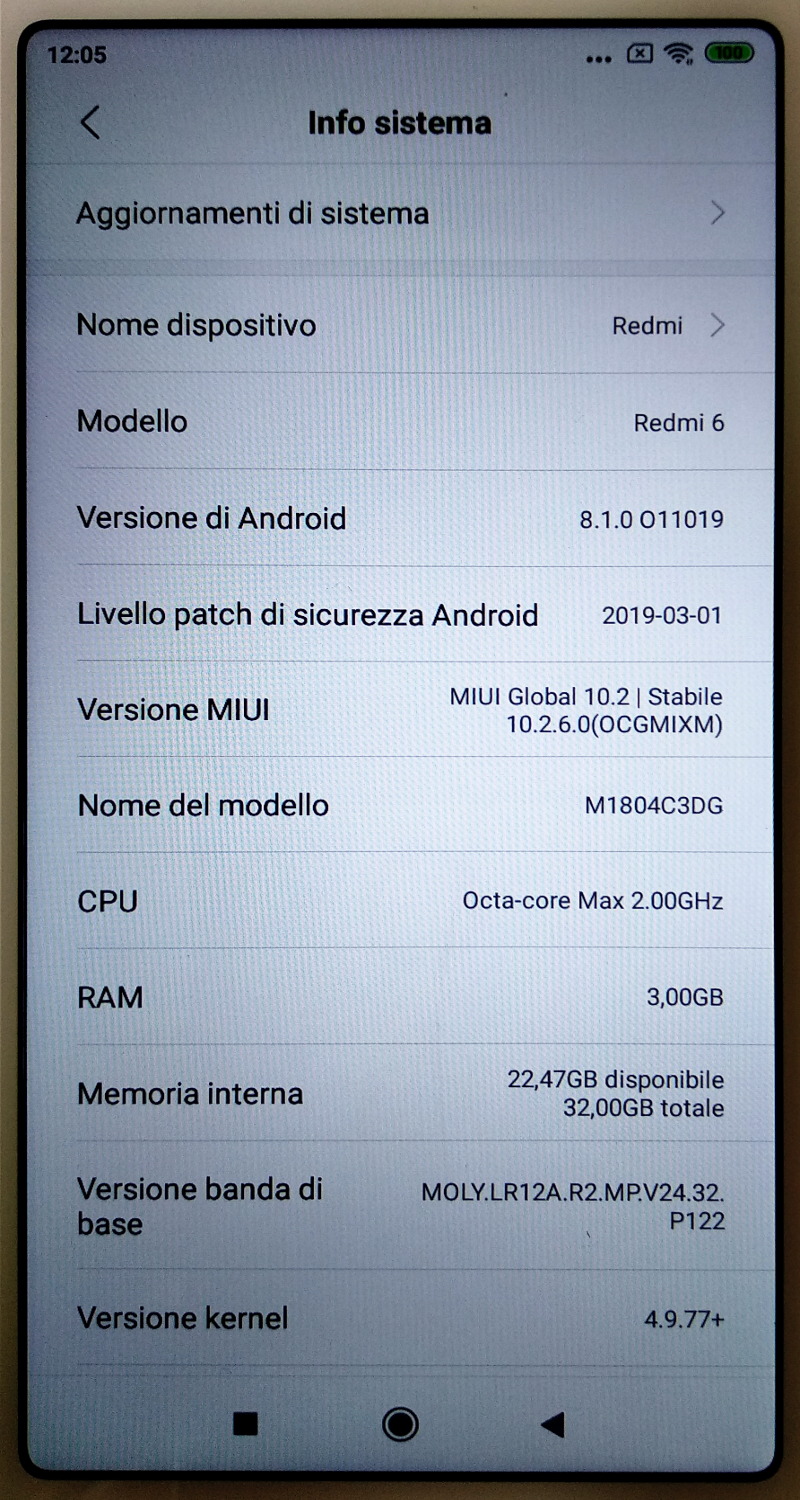

Android Version 8.1.0 O11019
Patch Level 2019-03-01
MIUI Version MIUI Global 10.2 Stable
10.2.6.0(OCGMIXM)

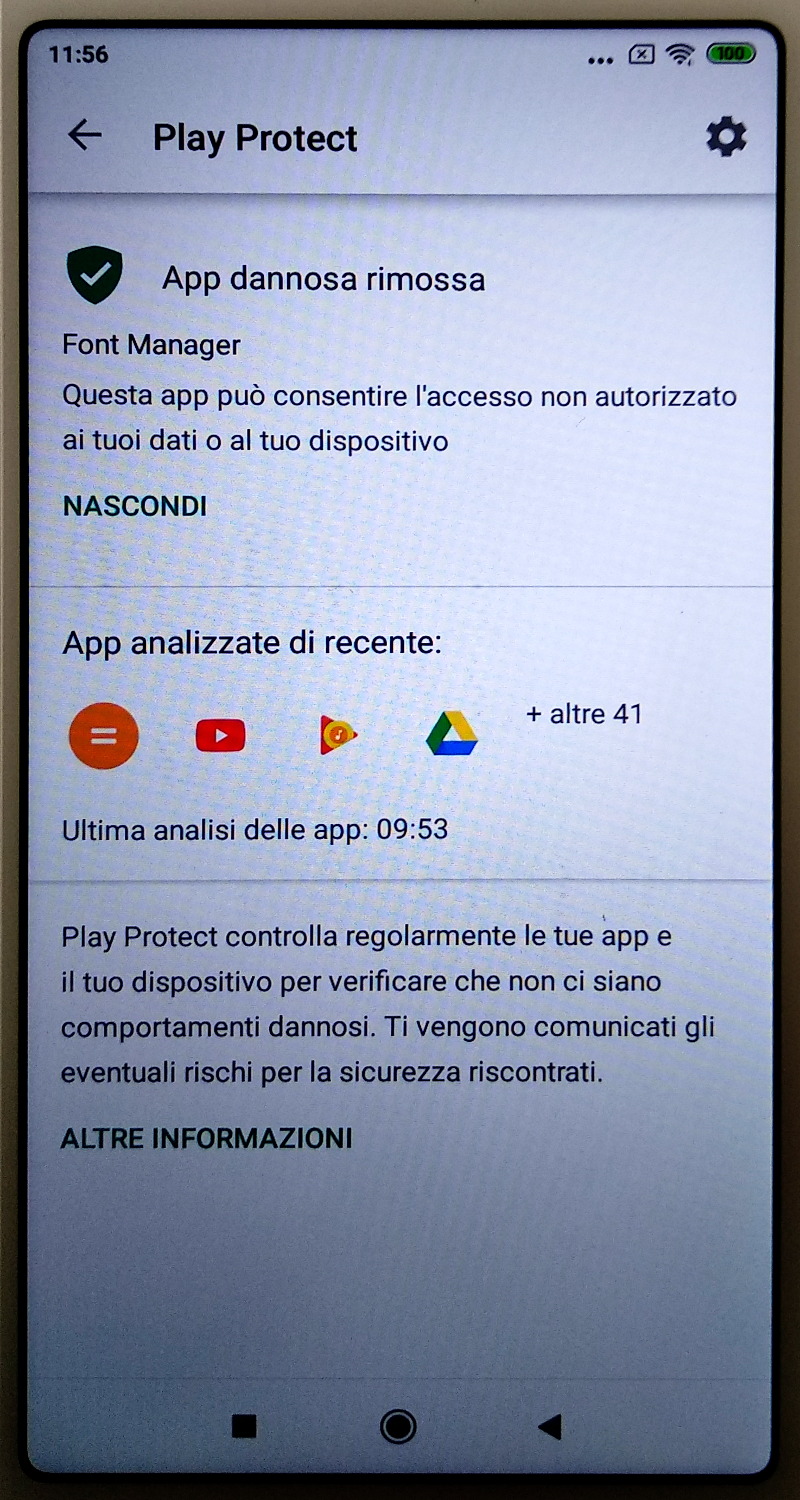

Play Protect: removed app Font Manager

Once upgraded the ROM, the phone started to download all the updated apps. In this phase the Play Protect warned about an harmful application Font Manager, which was removed (App dannosa rimossa, Harmful app removed).

OEM Unlock

On the smartphone

  • Enable the Opzioni sviluppatore: ImpostazioniInfo sistemaVersione MIUI (tap 7 times).

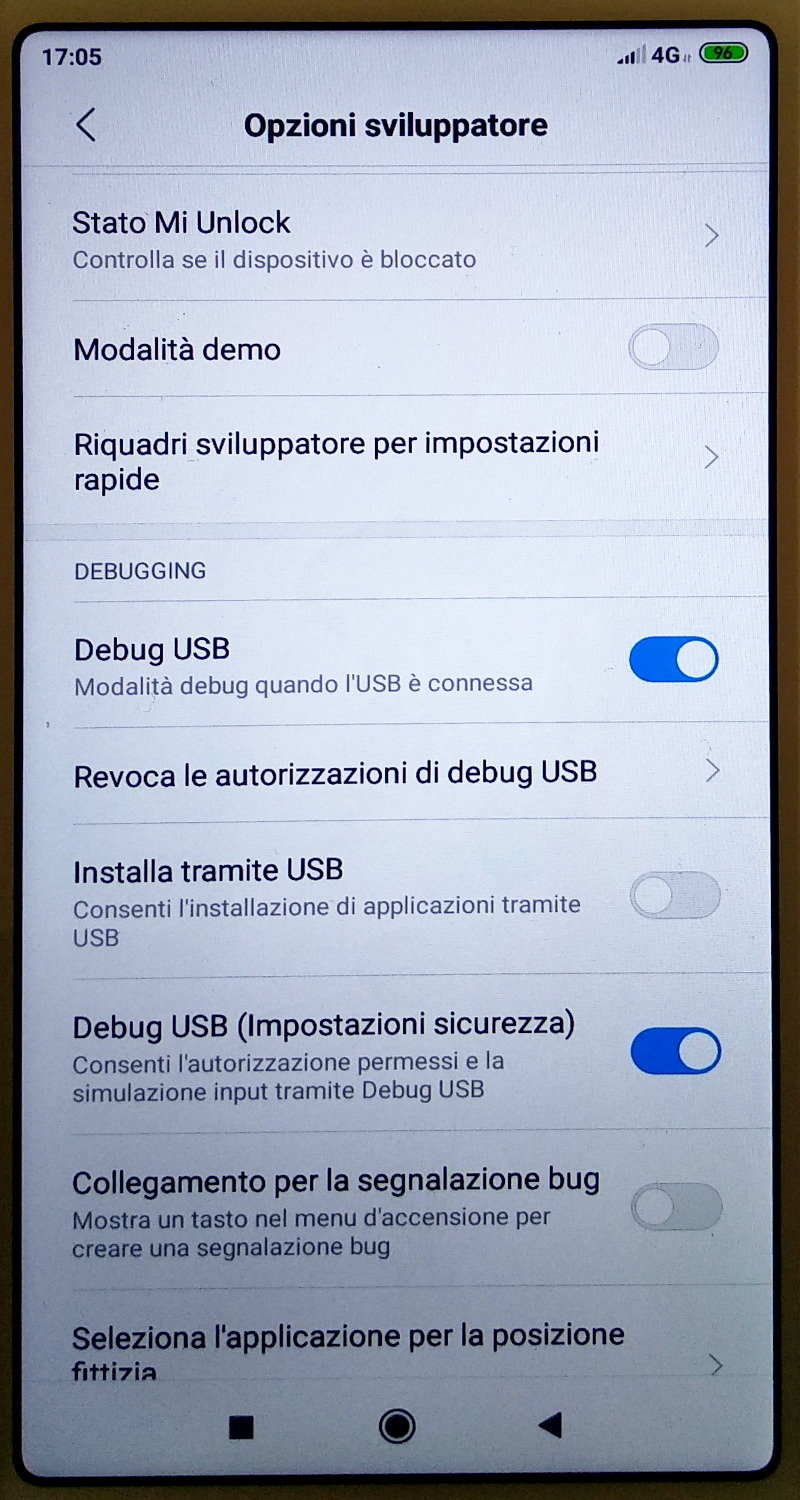

  • From ImpostazioniImpostazioni aggiuntiveOpzioni sviluppatore:
    • Enable Opzioni sviluppatore.
    • Enable Debug USB.
    • Enable Debug USB (Impostazioni sicurezza), required to use the adb program on the PC.

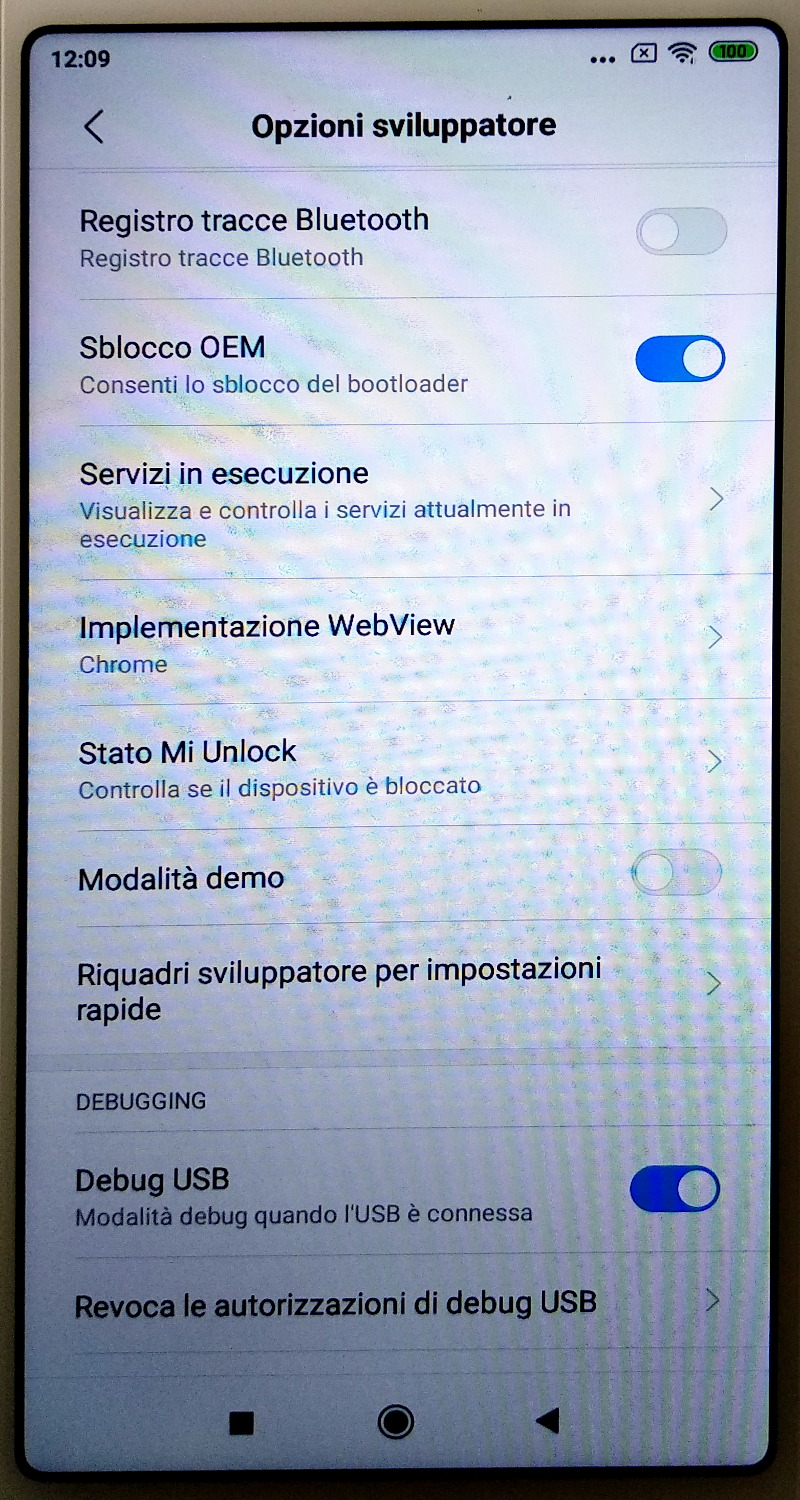

    • Enable Sblocco OEM.

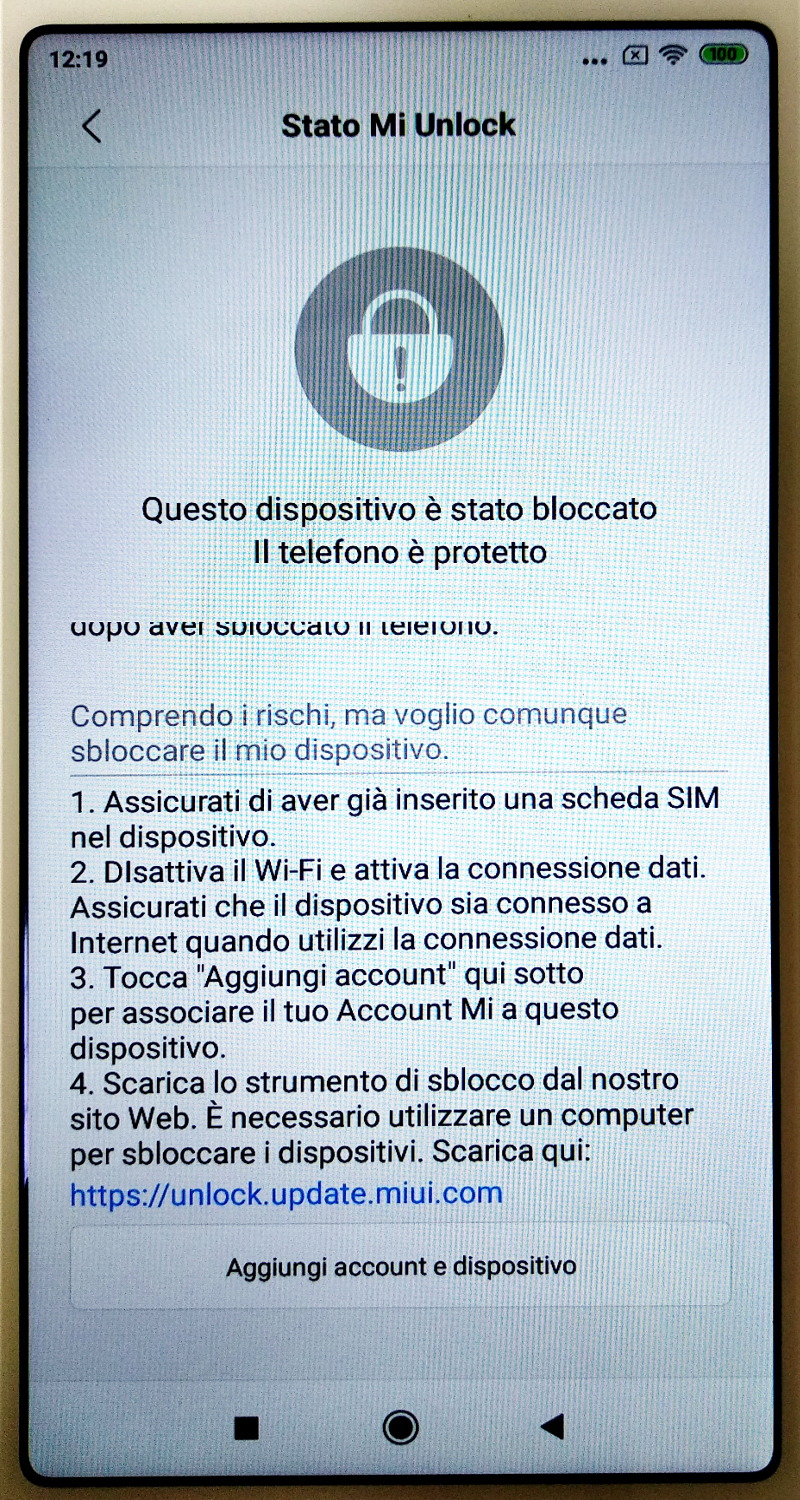

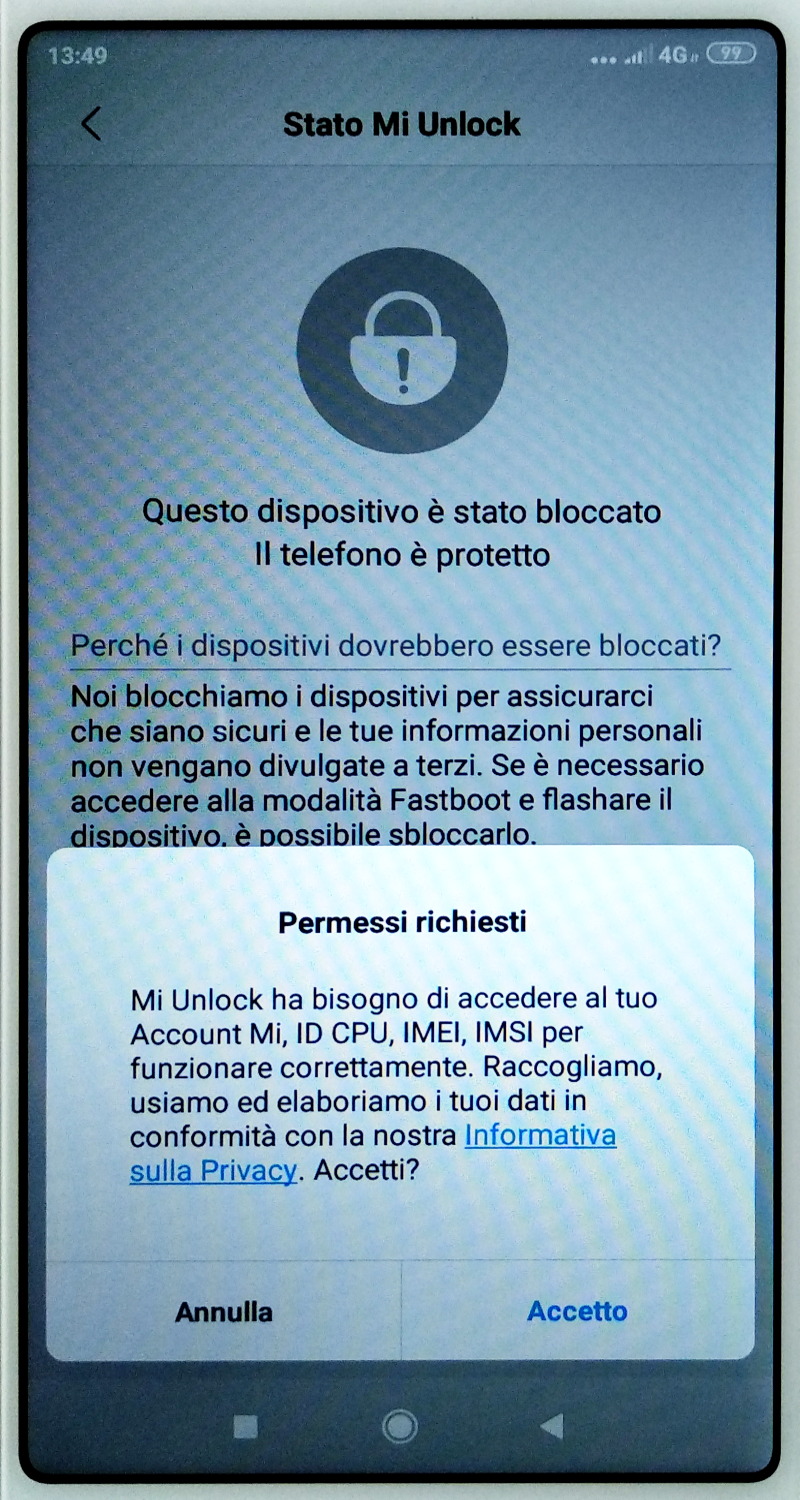

    • Run Stato Mi Unlock.

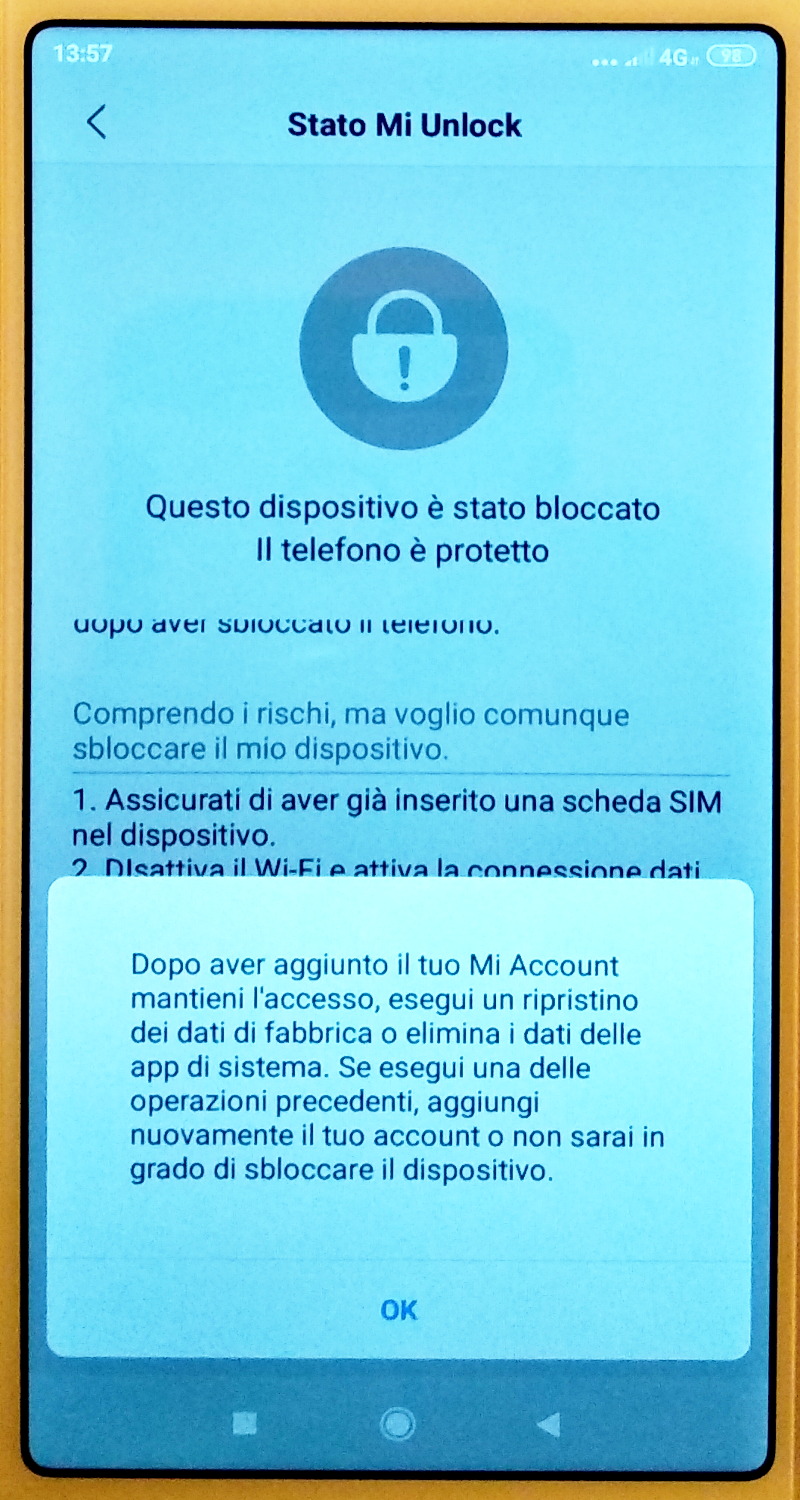

Running the Mi Unlock Status will show you several warning messages. It is required that WiFi is disabled and an internet mobile connection is available (so you need a working SIM card). Tapping the button Aggiungi account e dispositivo (Add account and device) you will be guided into a procedure to create a Mi account. A verification code will be sent via an SMS message.

Running this procedure have created your Mi account and have created a request to unlock your Xiaomi device, both will be used on a PC running MS-Windows and the Mi Unlock program.

The smartphone (bootloader) is still locked, you can check the status running the adb and fastboot programs on the PC, while the phone is connected via the USB cable (you have to grant USB permission via the phone pop-up):

adb reboot bootloader

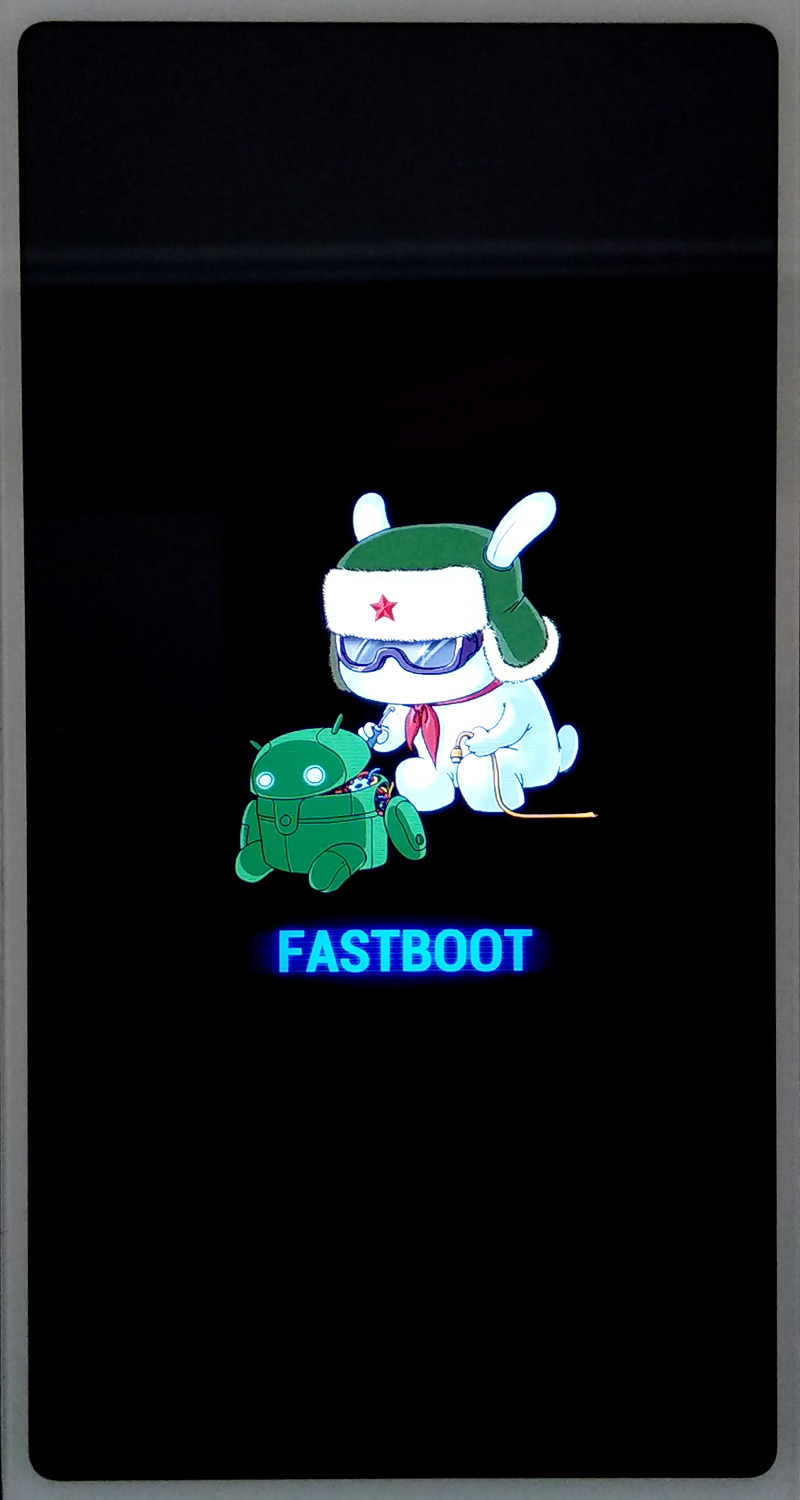

wait untill the fastboot logo appears on the phone, then:

fastboot flashing get_unlock_ability
...
(bootloader) unlock_ability = 0
OKAY [  0.000s]

On the MS-Windows PC

You need to have an account on the MiUi site (created on the smartphone, see above), then you have to install and execute the Mi Unlock program on a MS-Windows PC. Beware that we are running a program downloaded from an untrusted source and we don't have the source code to inspect. Every evil thing is possible, on your PC and on your smartphone! Run at your risk.

  1. Visit the site https://unlock.update.miui.com/ as suggested by the Mi Unlock Status on the smartphone.
  2. You will see the page Unlock Your Mi Phone, click the Unlock Now button.
  3. You will be redirected to the Chinese login page at account.xiaomi.com. Select English at the bottom.
  4. You can sign-in using the account created on the smartphone. Use the telepone number without the international prefix (add the prefix from the drop-down menu).
  5. Now we were redirected to a page where it is possible to download the Mi Unlock program: http://en.miui.com/unlock/download_en.html. We used the file miflash_unlock-en-2.3.803.10_2.zip (md5sum be7c0a80f34c15358e0d867ee800a97e).

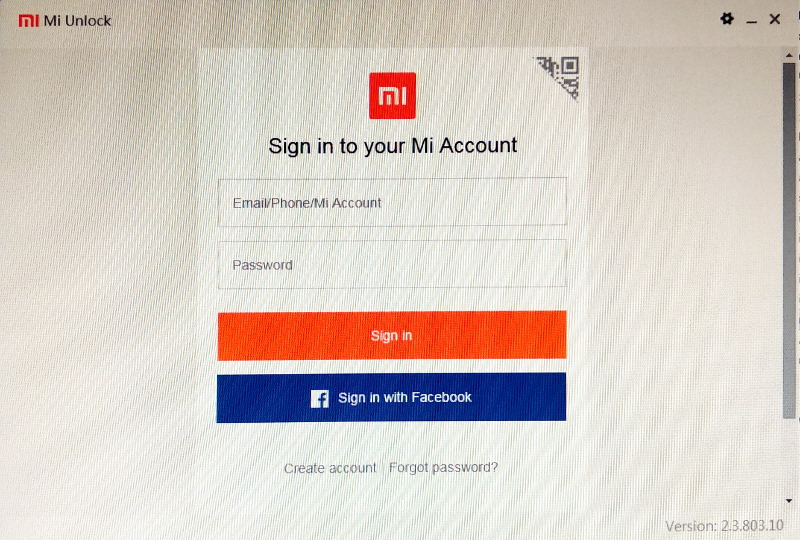

  6. Unzip the archive and run the miflash_unlock.exe executable; the unlock program requires to login using the Mi account (use again the telephone number and the password).
  7. Reboot the phone in Fastboot mode (using the adb tool fromt the PC, or using the VolumeDown + Power trick) and connect it to the PC running the Unlock program, via the USB cable. The program will show that the device was detected. May be you have to install the USB driver FIXME).

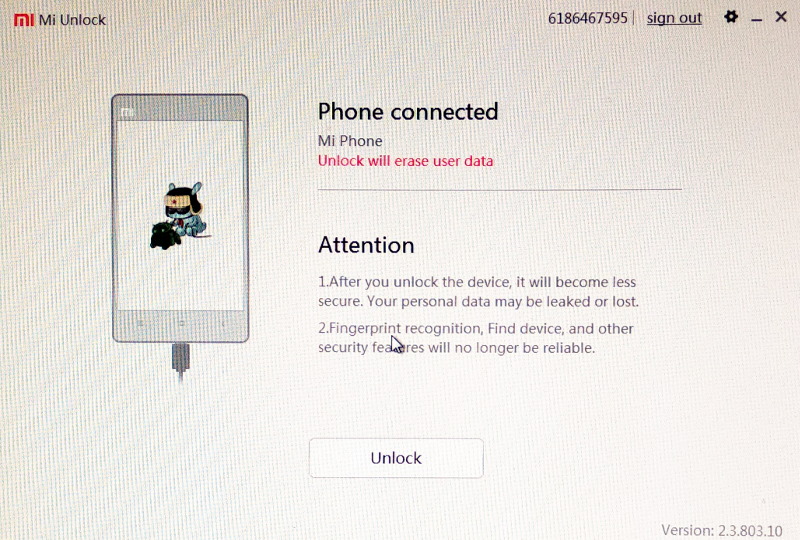

  8. You have to confirm the several warning popups, the important message is that Unlock will erase user data, so you will get a factory reset of the phone.

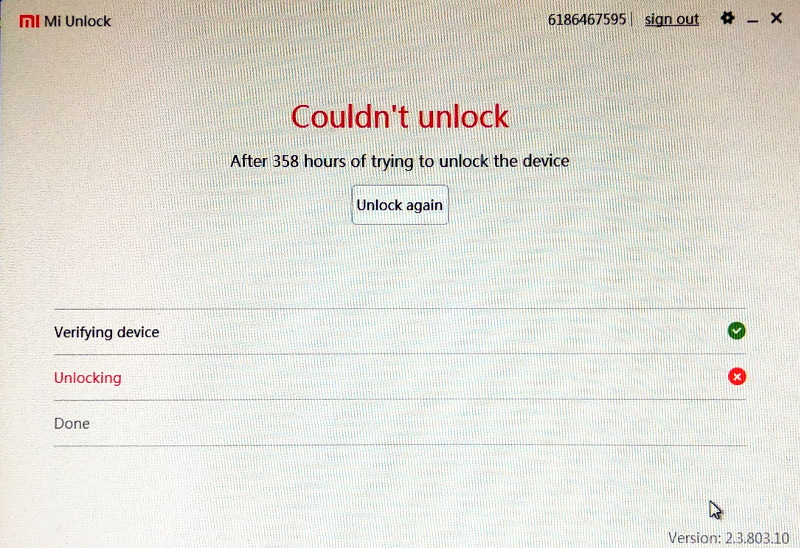

Unfortunately Xiaomi has introduced a very nasty temporal block: when you ask for phone unlock using the Mi Unlock Status on the phone, you will get a time to wait, in my case it was 358 hours, so the program on the PC failed with the following message: Couldn't unlock. A message in very bad English says: After 358 hours of trying to unlock the device.

After 15 days I repeated the above procedure from step 6. It failed a couple of times perhaps because I forgot to put the same SIM into the phone or may be because I used a different version of the Unlock program. Eventually I succeded into getting the bootloader unlocked.

The phone got a factory reset, once rebooted I repeated the procedure to enable the Developer options (Opzioni sviluppatore). It was also necessary to enable again Debug USB and Debug USB (impostazioni sicurezza). I finally confirmed that OEM Unlock is actually unlocked (Sblocco OEMIl bootloader è già sbloccato) and that Mi Unlock Status is also unlocked (Stato Mi UnlockSbloccato).

Another OTA System Update

After OEM Unlock, before flashing the TWRP Recovery, the phone received another OTA Update. We passed several phases: download, veryfy, reboot, install. The install procedure freezed at 74.49%; after a long pause it eventually rebooted into the updated system. At the end of the upgrade the system is:

Android Version 8.1.0 O11019
Patch Level 2019-03-01
MIUI Version MIUI Global 10.3 Stable
10.3.2.0 (OCGMIXM)

TWRP Recovery and Magisk

When you run the TWRP Recovery for the first time, you can install Magisk. It provides the su program, the actual super-user command, and the Magisk Manager, the app which manages root permissions. We downloaded the Magisk-v19.1.zip file from the GitHub releases page (4.7 Mb, md5sum 1205486d9302e2e8ea03d67bd1f67aa3). We copied the file to the /sdcard directory of the phone.

NOTICE: Does not know if it matters: I don't have cryptography enabled on the phone. I think that this will easy any action performed from recovery. From phone settings: ImpostazioniImpostazioni aggiuntivePrivacyCrittografia e credenzialiCrittografa il dispositivo usando la password della schermata di blocco (disabled).

1st method: failed

The official TWRP is downloadable from https://dl.twrp.me/cereus/. There are several recipes on the net for installing TWRP on the Redmi 6, it should be as easy as entering fastboot mode on the phone and executing on the connected PC:

fastboot flash recovery twrp-3.3.0-0-cereus.img
fastboot boot twrp-3.3.0-0-cereus.img

Unfortunately the phone boots into normal system, not into Recovery. If you start Recovery (power down, VolumeUp + Power until the Mi logo is shown), you enter the stock Mi-Recovery 3.0. It is very likely that flashing went OK, but during the bootstrap the recovery is automatically restored to the stock one.

2nd method: success

NOTICE: The key difference of this recipe seems to be flashing two partitions: the one name recovery with the actual TWRP image and the one named para, with dummy data.

We found this post on the net: LR.Team 3.3.0 TWRP Redmi 6 Custom Recovery. This custom recovery is provided by a Chinese team, here the original post. The program starts in Chinese language, fortunately you can switch to English by clicking a button.

This recipe states to flash two partitions: the regular recovery plus a partition named para. This second partition is flashed with a little image called misc.bin. It seems that flashing this second partition (which actually is a fake file, it does not contain any code) is the necessary trick to prevent automatic restore of the recovery partition.

Once started the phone in fastboot mode, we ran this from the connected PC:

fastboot flash recovery recovery-TWRP-3.3.0-0423-REDMI6-CN-wzsx150.img
fastboot flash para misc.bin
fastboot boot recovery-TWRP-3.3.0-0423-REDMI6-CN-wzsx150.img

In this way we succeeded in starting TWRP recovery. In the first run we did not make any action in TWRP, just rebooted. It turned out that installation of TWRP was not permanent, at the following attemp to start recovery (via adb command) we found again the sotck Mi-Recovery 3.0.

So we decided to exactly follow the instructions step by step:

  1. Start TWRP as seen above.
  2. Mount system and vendor partitions. From TWRP Main menu, Mount, tap System and Vendor. Then tap back.
  3. Execute Install Root. From TWRP Main Menu, Advanced. This option installs Magisk 19.0.
  4. Execute Sign Boot. From TWRP Main Menu, Advanced, Sign Boot, Swipe to Confirm. Then tap back.
  5. Optional: install Magisk 19.1. From TWRP Main Menu, Install, tap on Magisk-v19.1.zip file, (do not verify signature, do not reboot) Swipe to confirm Flash. After flashing tap the Wipe Cache/Dalvik button.
  6. Reboot to System.

NOTICE: The LR.Team TWRP 3.3.0-0423 image contains Magisk 19.0 (unpack the img file and extract the ramdisk content, you will find a /supersu/SuperSU_installer.zip file, which actually is Magisk). This is the default root method, and it is executed inside TWRP with the Install Root title.

NOTICE: Some recipes on the net say to flash also LazyFlash or some other DM Verity Disabler tool. It seems that it is not longer require with Magisk 19. Infact, during Magisk installation, we read a log line stating Removing dm(avb)-verity in dtb (see /common/boot_patch.sh of the SuperSU_installer.zip file). By the way, the LR.Team TWRP image contains also the /supersu/no-verity-opt-encrypt.zip file into the ramdisk image, which actually is the LazyFlasher installer.

NOTICE: It seems that flashing the para partition is a non-permanent action. If you want to boot into another recovery from the fastboot mode, you have to flash it again witht the dummy misc.bin.

FIXME Sometimes the /sbin/su command disappears. It happened after a system crash (trying to remove one system app via Titanium Backup) or after a simple system reboot, or doing a reboot from TWRP menu. Fortunately enough, it was sufficient to reboot into TWRP Recovery and reinstall Magisk-v19.1.zip.

3rd method: failed

Wishing to have the official TWRP image instead of an unofficial one, I used the previous method substituting the LR.Team image with the official one from TWRP (twrp-3.3.0-0-cereus.img). The TWRP official image were flashed, but the result was un unbootable system! Even booting in fastboot or recovery were problematic, because I got a black screen after the “Mi” logo regardless the key combination pressed at boot time.

After several blind tries, the TWRP screen eventually appeared! Perhaps the right keys sequence was: power off, VolumeUp + Power, wait one minute, then VolumeDown + Power). Fromt the TWRP menu I fortunately booted in fastboot mode and re-flashed LR.Team image.

"Internal problem" warning message

FIXME Now, at each reboot, we receive a warning message: Sistema Android - Si è verificato un problema interno con il dispositivo. Per informazioni dettagliate, contatta il produttore. The English version of the message should be There's an internal problem with your device. Contact your manufacturer for details. We are still investigating how harmful is that message.

The solution in this post does not apply because values of keys ro.build.date, ro.build.date.utc and ro.build.fingerprint are the same in files /system/build.prop and /vendor/build.prop.

The problem seems neither be related to the following line in /system/build.prop:

ro.expect.recovery_id=0xfe0fcba35f31b103a8f4d7e868f5185de11184d6000000000000000000000000

Using the bootimg-id tool we calculated the ID of the custom TWRP recovery, which is different (0xb843c727d388c4283be9b233d2353c69805487c0000000000000000000000000), but fixing that line did not solve the warning message at boot. NOTICE: to change permanently the /system/build.prop file, we operated in TWRP recovery: first mounting the /system partition in read/write mode, then running a TWRP terminal session and replacing that file with a new one. This was required because every modification to the /system partition performed via an adb shell, is lost after a reboot.

Tampering with the /system partition

FIXME I still have big problems on my Redmi 6: su is working, but every change to the /system partition is lost/reverted on reboot. This behaviour does not exist in another phone (Xiaomi Mi A1), despite they are both running TWRP and Magisk. Versions tested are TWRP 3.2.1 and Magisk 17.3 on the working Mi A1 and TWRP 3.3.0 and Magisk 19.1 on the problematic Redmi 6. To make permanent changes to the /system partition, I need to use a terminal session from TWRP Advance menu.

Once you got root privileges on the phone, you can modify everything on it, even the /system partition which contains the so called ROM (which is not actually a read-only memory, but a filesystem hosted into a read/write memory, mounted in read/only mode).

In the old days, you just have to mount -o remount,rw /system and make any changes you like, but if you installed a recent version of Magisk, it used a systemless root method. It's essentially a way to modify the system without actually modifying it. Modifications are stored safely in the boot partition instead of modifying the real system files. This is the most important feature of this tool. Since the original system files remain unchanged, modifications can go undetected by Google SafetyNet and other verification methods (used e.g. before installing OTA updates).

The bottom line is: any change you make to the /system partition, does not survive a reboot. To make a permanent change you have to write a Magisk module following this guide. Actually a module does not change the /system partition, but it contains the modifications that will be merged into the /system partition on each bootstrap.

You can also modify the /system partition when the phone is running the recovery program. For example, if you have installed the TWRP Recovery, you can mount the /system partition in read/write mode (from Mount menu) and execute a terminal with root privileges (from Advanced menu). Every modification to the /system partition will be permanent: beware that this may break SafetyNet checks performed by some applications or break OTA upgrades.

Removing Xiaomi bloatware (system apps)

Once got root permissions, the most desidered task is to remove Miui bloatware. On the Redmi 6 there are plenty of applications installed as system apps (i.e. it is not possible to remove them), which require tons of permissions without a plausible justification, they blatantly invade our privacy and leak plenty of our private data to Xiaomi. Just to make an example: the Mi Calculator requires access to storage, location and phone, the Music application requires access to contacts and phone, and so on. There are plenty of custom apps: Security, Browser, Mi Drop, Scanner, Feedback, etc. which, once launced, require you to accept terms of use so invasive that the only wish is to deinstall them.

FIXME Unfortunately I have not yet found a way to remove such software, but it seems that it is possible to disable it. Here it is a list of our tries.

Deleting the app folder (failed)

The first try was to simply delete the app folders via adb shell, something like this:

su
mount -o remount,rw /system
rm -r /system/app/MiuiVideoPlayer
rm -r /data/data/com.miui.videoplayer
mount -o remount,ro /system

Surprisingly, afer a reboot, the directories were restored with their original contents. Every change to that directories is simply reverted once rebooted. This is probably related to the way Magisk handles tmpfs overlay (and Magic Mount), the way used by Magisk to hide himself from detection.

Disabling app using Android package manager (success)

The Android operating system provides the pm Package Manager command, (here a nice cheat-sheet). Using root permission on the command line, you can list all installed packages and disable some of them:

# List all installed packages
pm list packages
# Disable a package:
pm disable com.miui.calculator
# List disabled packages
pm list packages -d

When you disable some packages, the associated icon disappears immediately from the Miui launcher. It seems that disabled state persist across reboots. I disabled all of the following (apps replaced by others from Google Play or F-Droid):

com.miui.videoplayer Mi Video player
com.miui.calculator Mi Calculator
com.miui.weather2 Wheather forecast
com.xiaomi.midrop Mi Drop
com.xiaomi.scanner Scanner (QR Code)
com.miui.player Music Player
com.miui.bugreport Feedback app
com.miui.gallery Images Gallery (this one is re-enabled automatically)

Privacy and updates

Here are some settings concerning privacy, notifications and automatic updates.

Desktop assistant and notifications

  • Desktop (long tap) ⇒ ImpostazioniAltro
    • Assistente app (disable)
    • Mostra suggerimenti (disable)
  • Google app
    • Altro ⇒ Impostazioni ⇒ Notifiche
      • Visualizza notifiche (disable)
      • Badge icona applicazione (disable)
    • Altro ⇒ Personalizza Discover
      • Aggiornamenti meteo (disable)
      • Altre preferenze ⇒ Viaggi
        • Suggerimenti (disable)

Install from unknown sources

  • Impostazioni
    • Gestisci app
      • Tap on each app, especially Chrome, Gestore File, F-Droid, etc.
        • Installa app sconosciute (disable)

Automatic app update

  • Google Play ⇒ Hamburger menu ⇒ Impostazioni
    • Impostazioni di notifica
      • Aggiornamenti (informami quando disponibili): No
      • Aggiornamenti automatici (informami quando): Yes
      • Preregistrazione: No
      • Offerte e promozioni: No
    • Aggiornamento automatico app: Non aggiornare automaticamente le app
    • Preferenze di download delle app ⇒ Chiedi ogni volta
    • Proteggi i miei aggiornamenti (invia notifica se altri provano ad aggiornare): Yes

Automatic system update

  • Impostazioni
    • Aggiornamento app di sistema ⇒ Gear icon ⇒ Impostazioni
      • Visualizza notifiche sull'aggiornamento: No
      • Aggiornamenti automatici: Non aggiornare

Data Synchronization

  • Impostazioni
    • Account ⇒ Sincronizzazione
      • Sincronizza dati automaticamente
        • Google ⇒ Select only what is required (e.g. Calendario, Contatti, Gmail)

Redmi 6A: Google App Keeps Stopping Redmi 6A: System Update Failed Redmi 6A: System Update Available Redmi 6A: Harmful app removed Redmi 6A: System Info Redmi 6A: Developer Options Redmi 6A: More Developer Options Redmi 6A: Mi Unlock Status: Requirements Redmi 6A: Mi Unlock Status: Permissions Redmi 6A: Mi Unlock Status: Warning Redmi 6A: Fastboot

Mi Unlock: Sign-in Mi Unlock: Warning Mi Unlock: Delay

Hardware Tests

To enter the hardware test mode go to dialling screen and dial *#*#64663#*#*

Here you can check if you are affected by the proximity sensor problem: move your hand toward the top of the phone, you should see that the proximity sensor sense your hand at a distance of about 3-5 cm. It should keep sensing it even if you touch the phone, but my model is defective: when you put your hand closer than one centimeter, the proximity fail.
